MEDIANA i35 Advanced
Body Composition Analyzer
Advanced multi-frequency segmental body composition analysis with comprehensive adult and child result sheets — delivering clear, detailed results in approximately 25 seconds.
Advanced Analysis. Clinically Accurate. Professional Performance.
Mediana · Body Composition Analyzer

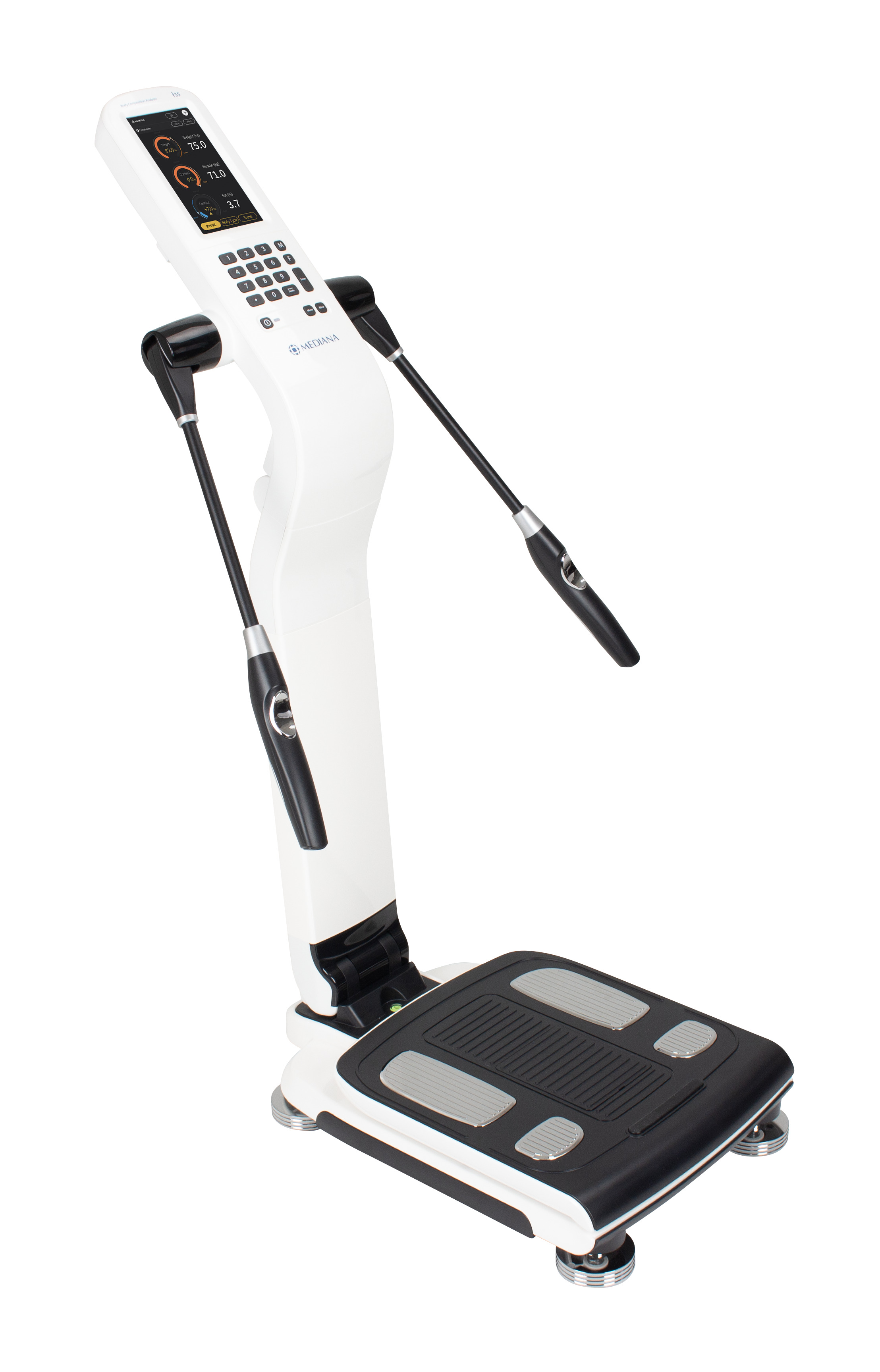

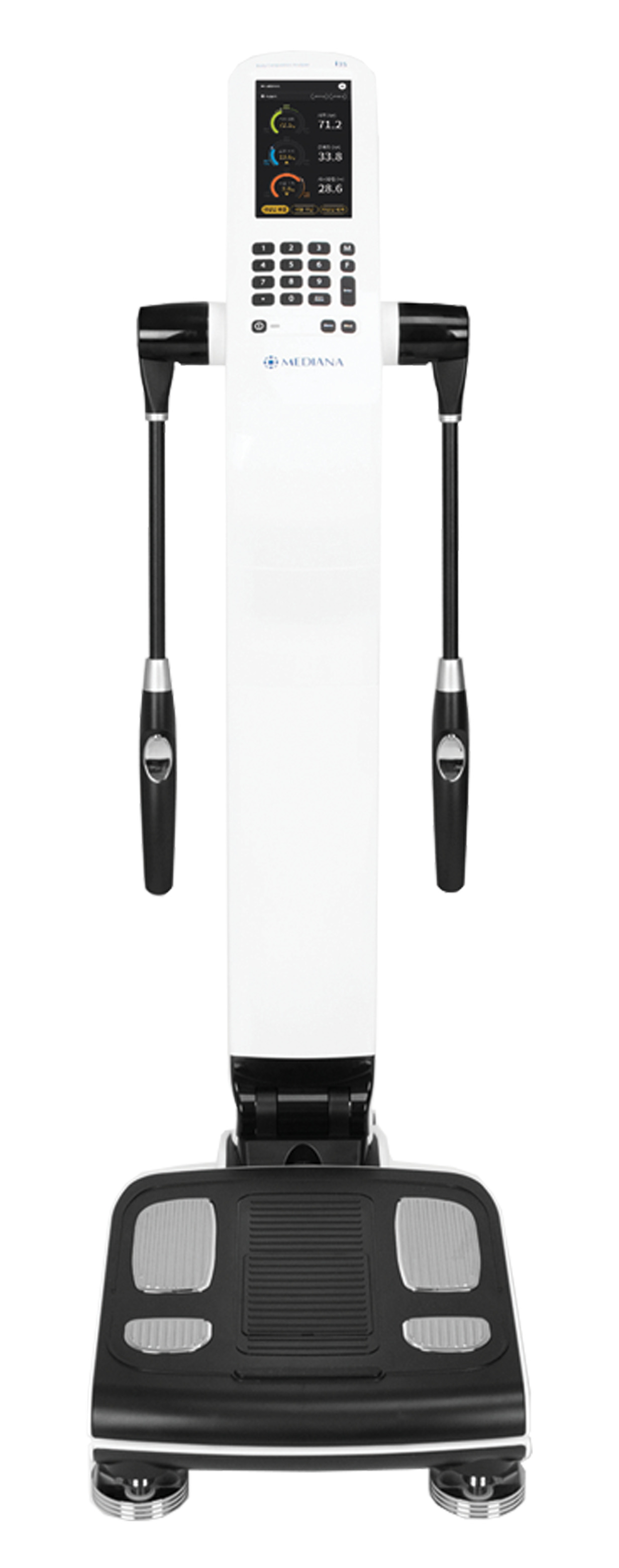

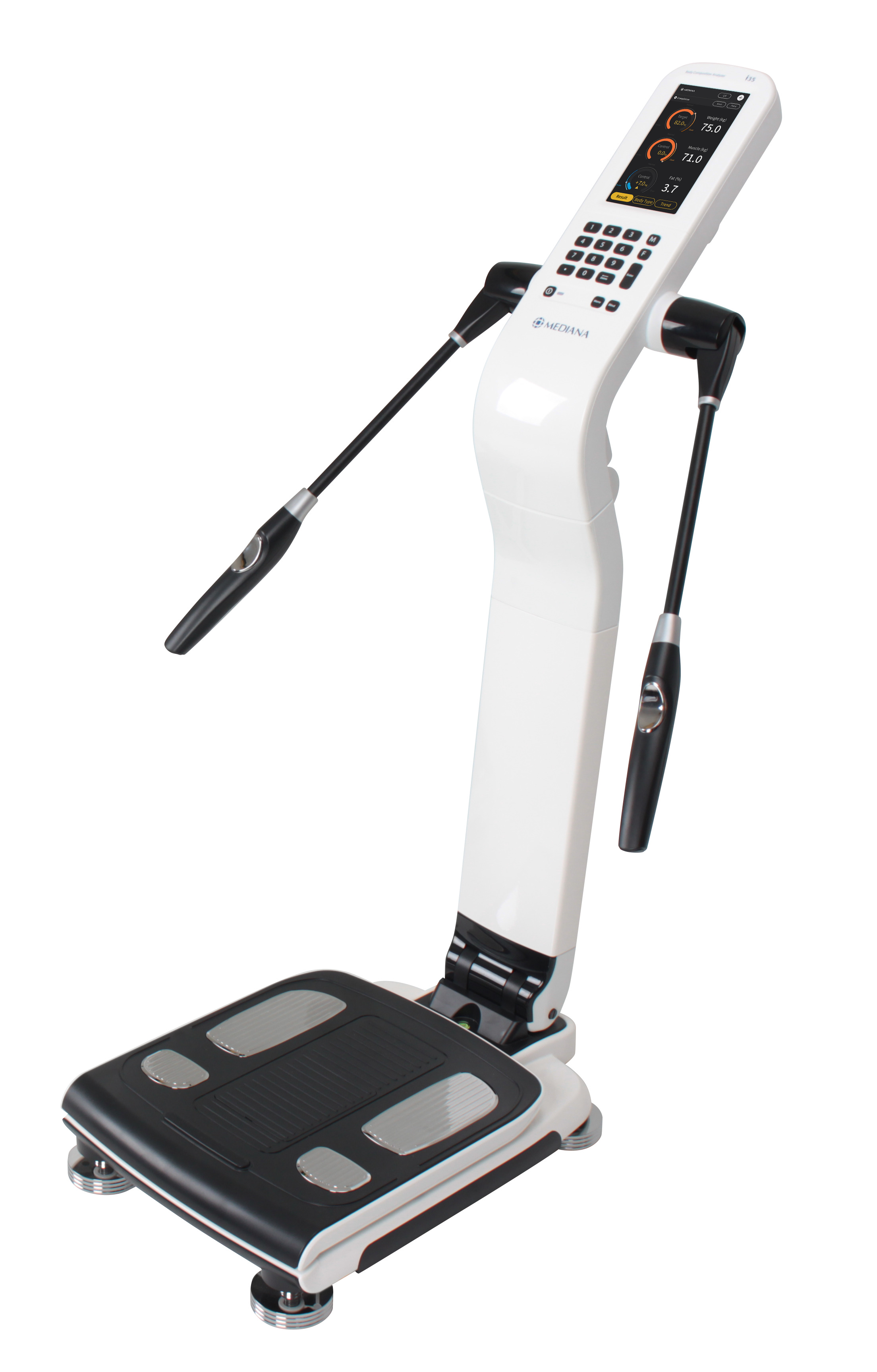

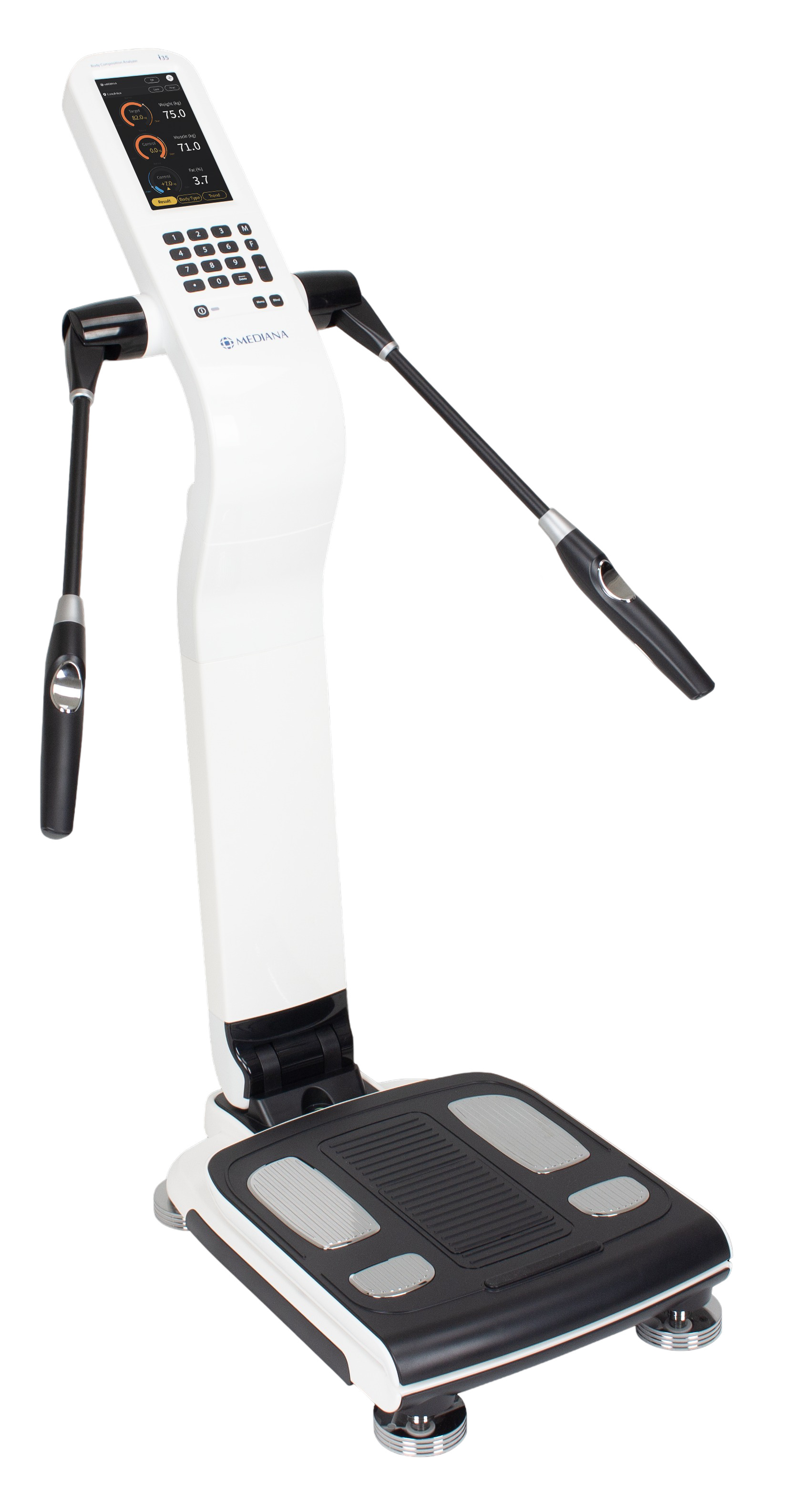

i35: Advanced Body Composition Analyzer
The i35 Advanced Body Composition Analyzer is a high-precision multi-frequency segmental body composition analysis system designed for hospitals, clinics, diagnostic centers, fitness clubs, wellness centers, and sports performance facilities.
- Multi-Frequency Segmental Analysis with high correlation to DEXA
- Tetrapolar electrode method using 8-point electrodes
- Blind Mode for private body composition measurement
- Three-page result sheet — comprehensive and easy to understand
- Rotatable hand electrodes for comfortable testing
- Powerful iManager software for advanced data management
- Three-fold compact design for easy carrying, transport and storage
Instructional Video
i35 Professional Body Composition Analyzer
What Every Result Sheet Shows
Every measurement generates a comprehensive result sheet with detailed analysis, comparison and progress tracking.

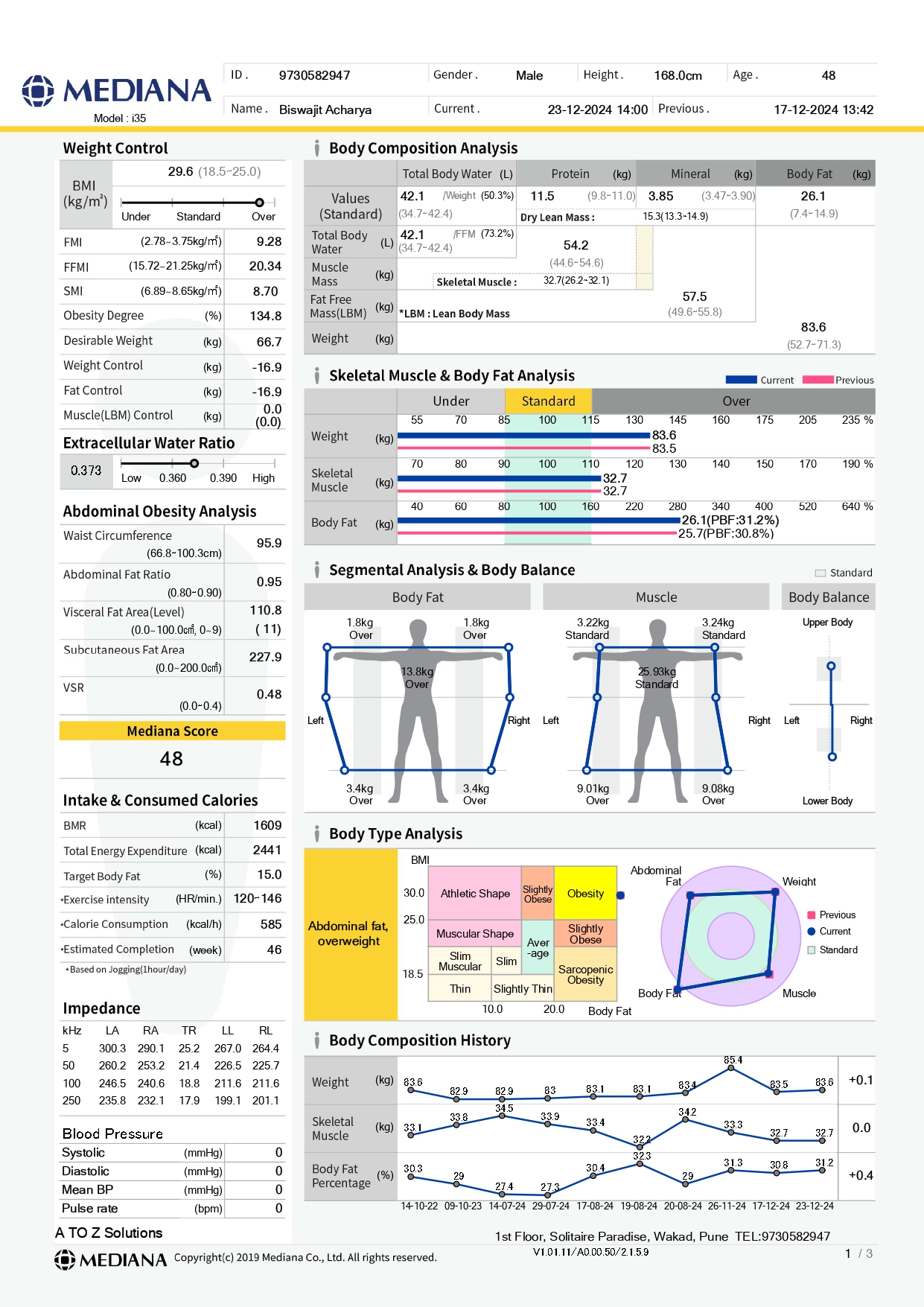

GENERAL RESULT SHEET
01
Body Composition
Understand your key body composition and health indicators.
- Body Composition Analysis Breakdown of Total Body Water, Protein, Minerals, Body Fat, Muscle Mass, Fat-Free Mass and Weight.
- Skeletal Muscle & Body Fat Analysis Compare Weight, Skeletal Muscle and Body Fat with standard ranges and previous results to track changes over time.
- Weight Control Includes BMI, FMI, FFMI, SMI, Obesity Degree, Desirable Weight, Weight Control, Fat Control and Muscle (LBM) Control.
- Body Type Analysis Determines body type using BMI and Body Fat, with a visual comparison of Weight, Muscle, Body Fat and Abdominal Fat against standard ranges.
- Abdominal Obesity Analysis Provides Waist Circumference, Abdominal Fat Ratio, Visceral Fat Area, Subcutaneous Fat Area and VSR.
- Extracellular Water Ratio Displays the ECW Ratio with a standard reference range.
- Mediana Score Provides an overall Body Composition Score.
- Intake & Consumed Calories Provides insights into BMR, Total Energy Expenditure, Target Body Fat, Exercise Intensity, Calorie Consumption and Estimated Completion Time.
- Blood Pressure (Manual Entry) Displays Systolic, Diastolic, Mean BP and Pulse Rate.
02

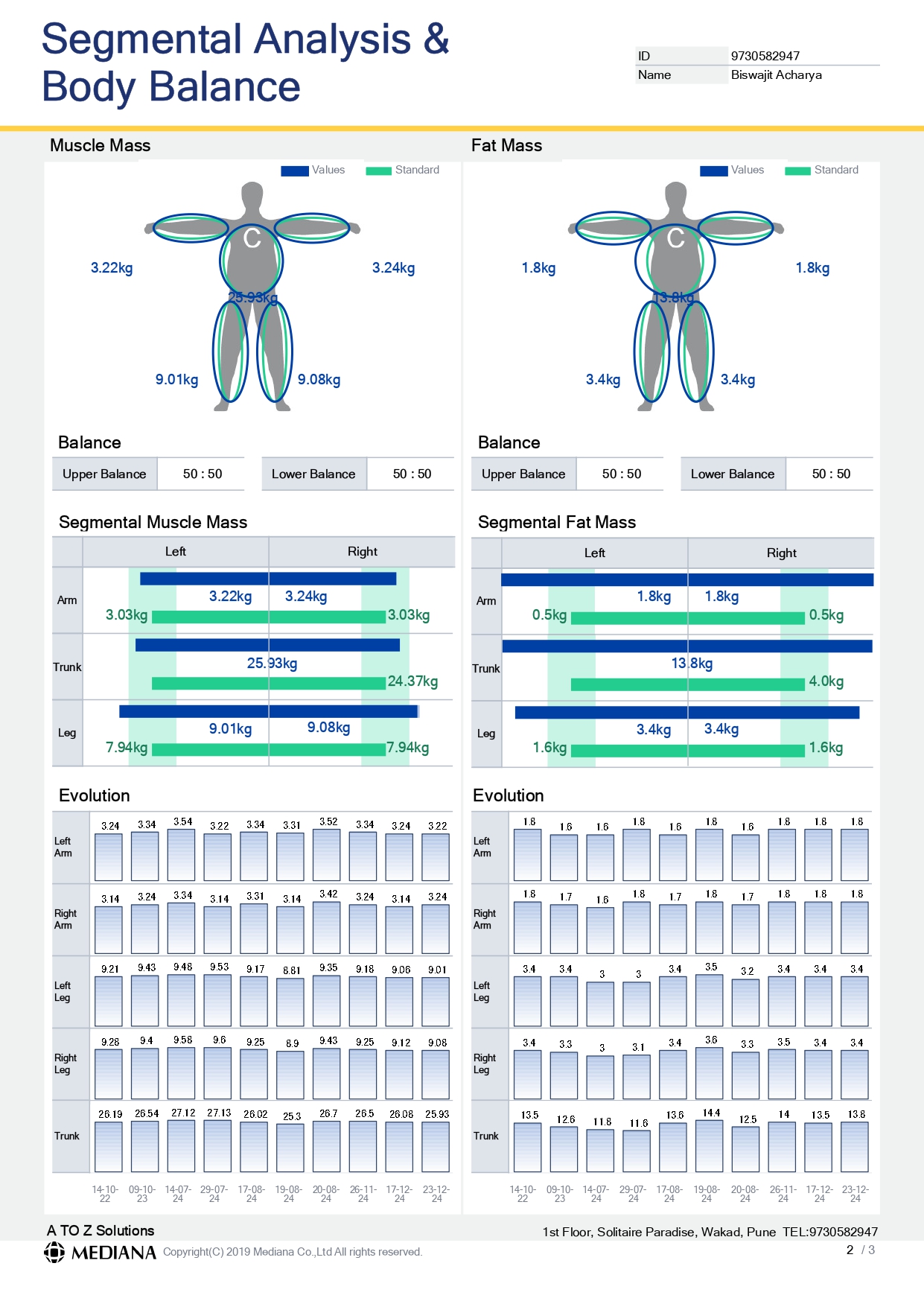

Segmental Analysis
See how muscle and fat are distributed and balanced across your body.
- Segmental Analysis & Body Balance Visual analysis of Muscle Mass, Fat Mass and Body Balance across different body segments.
- Segmental Muscle Mass Shows muscle mass in the Left Arm, Right Arm, Trunk, Left Leg and Right Leg, with comparison against standard values. Past 10 readings (date wise) for progress tracking.
- Segmental Fat Mass Shows fat mass in the Left Arm, Right Arm, Trunk, Left Leg and Right Leg, with comparison against standard values. Past 10 readings (date wise) for progress tracking.
- Body Balance Displays Upper Body and Lower Body balance, including left-to-right balance ratios.
- Segmental Muscle Evolution Tracks changes in segmental muscle mass across previous readings. Past 10 readings (date wise) for progress tracking.
- Segmental Fat Evolution Tracks changes in segmental fat mass across previous readings. Past 10 readings (date wise) for progress tracking.
03

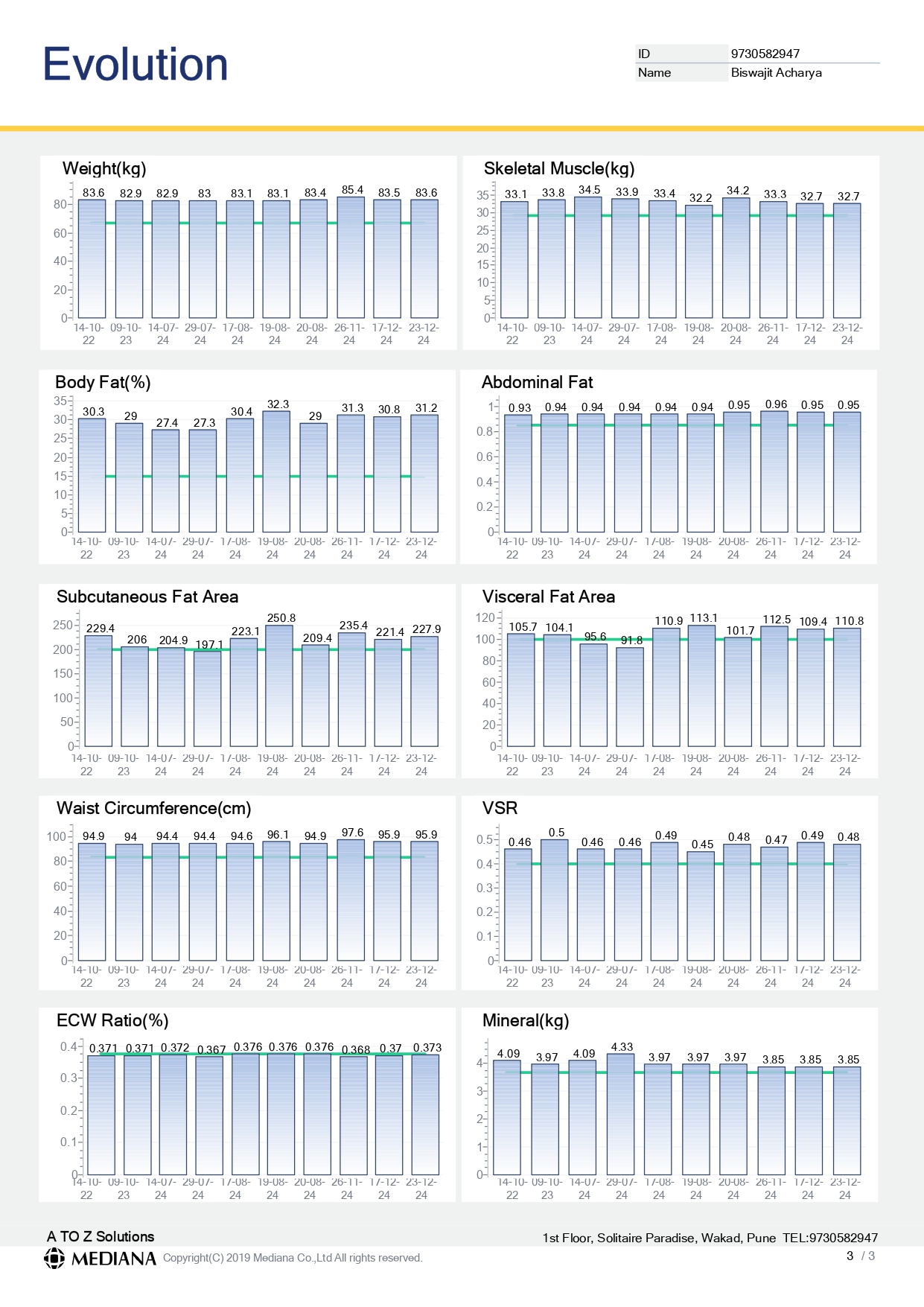

Progress & Evolution
Track your body composition and health-related changes over time.
- Weight Evolution Tracks changes in Weight across previous measurements.
- Skeletal Muscle Evolution Tracks changes in Skeletal Muscle across previous measurements.
- Body Fat Evolution Monitors changes in Body Fat (%) over time.
- Abdominal Fat Evolution Tracks changes in Abdominal Fat over previous measurements.
- Subcutaneous Fat Area Evolution Monitors changes in Subcutaneous Fat Area over time.
- Visceral Fat Area Evolution Tracks changes in Visceral Fat Area over previous measurements.
- Waist Circumference Evolution Tracks changes in Waist Circumference over time.
- VSR Evolution Monitors changes in VSR across previous measurements.
- ECW Ratio Evolution Tracks changes in ECW Ratio (%) over previous measurements.
- Mineral Evolution Monitors changes in Mineral levels across previous measurements.

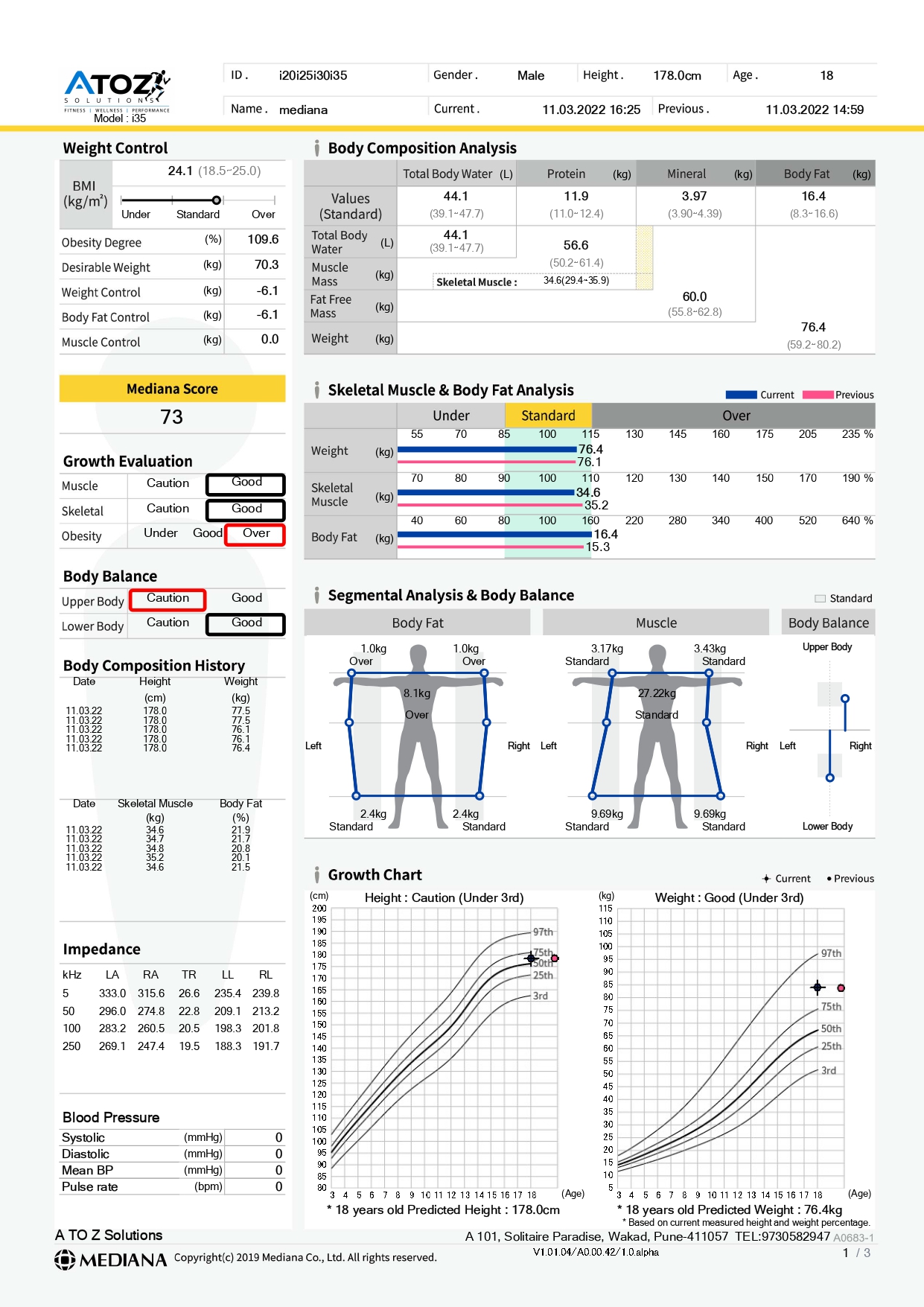

CHILD RESULT SHEET
01
Body Composition
Understand your key body composition and growth indicators.
- Body Composition Analysis Breakdown of Total Body Water, Protein, Minerals, Body Fat, Muscle Mass, Fat-Free Mass and Weight.
- Skeletal Muscle & Body Fat Analysis Compare Weight, Skeletal Muscle and Body Fat with standard ranges and previous results to track changes over time.
- Weight Control Includes BMI, Obesity Degree, Desirable Weight, Weight Control, Body Fat Control and Muscle Control.
- Mediana Score Provides an overall Body Composition Score.
- Growth Evaluation Evaluates Muscle, Skeletal Muscle and Obesity against age-based standards.
- Body Balance Evaluates Upper Body and Lower Body balance.
- Segmental Analysis & Body Balance Visual analysis of Body Fat and Muscle distribution across the body, along with Body Balance.
- Body Composition History Tracks previous Height, Weight, Skeletal Muscle and Body Fat measurements.
- Impedance Displays impedance values for the Left Arm, Right Arm, Trunk, Left Leg and Right Leg across multiple frequencies.
- Blood Pressure (Manual Entry) Displays Systolic, Diastolic, Mean BP and Pulse Rate.
02
Growth & Development
Monitor growth and development over time.
- Growth Chart – Height Tracks height against age-based 3rd, 25th, 50th, 75th and 97th percentile curves.
- Growth Chart – Weight Tracks weight against age-based 3rd, 25th, 50th, 75th and 97th percentile curves.
- Predicted Height Provides an age-based predicted height reference.
- Predicted Weight Provides an age-based predicted weight reference.
- Growth Status Indicates the growth status of Height and Weight based on age-related standards.
03

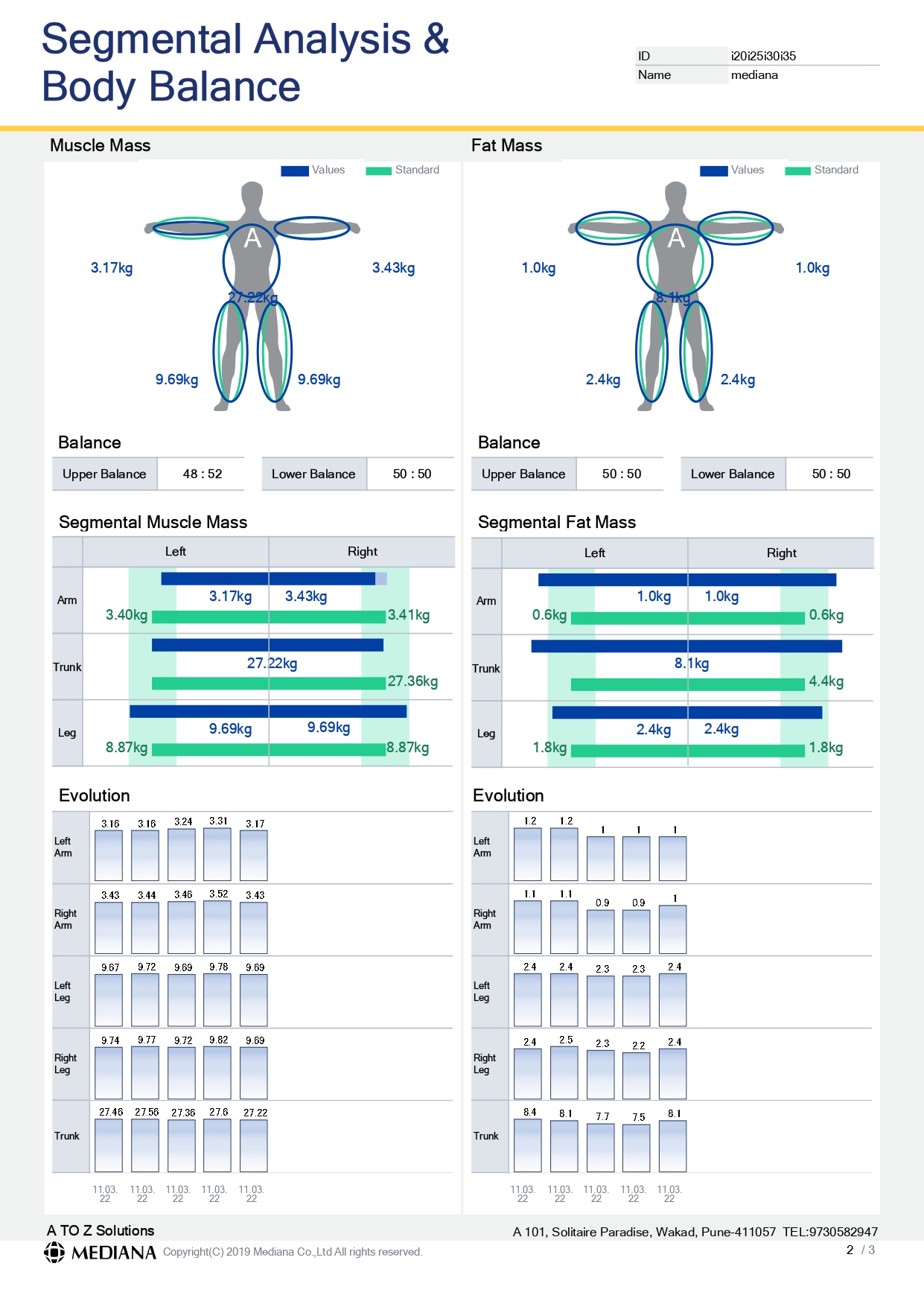

Segmental Analysis
See how muscle and fat are distributed and balanced across your body.
- Segmental Muscle Mass Shows muscle mass distribution in the Left Arm, Right Arm, Trunk, Left Leg and Right Leg, with comparison against standard values.
- Segmental Fat Mass Shows fat mass distribution in the Left Arm, Right Arm, Trunk, Left Leg and Right Leg, with comparison against standard values.
- Body Balance Displays Upper Body and Lower Body balance, including left-to-right balance ratios.
- Segmental Muscle Evolution Tracks changes in segmental muscle mass across previous readings.
- Segmental Fat Evolution Tracks changes in segmental fat mass across previous readings.
04
Progress & Evolution
Track changes in body composition and growth over time.
- Body Fat Evolution Tracks changes in Body Fat (%) across previous readings.
- Abdominal Fat Evolution Monitors changes in Abdominal Fat over time.
- Subcutaneous Fat Area Evolution Tracks changes in Subcutaneous Fat Area.
- Visceral Fat Area Evolution Tracks changes in Visceral Fat Area.
- Waist Circumference Evolution Tracks changes in Waist Circumference.
- VSR Evolution Monitors changes in VSR.
- ECW Ratio Evolution Tracks changes in ECW Ratio (%).
- Mineral Evolution Tracks changes in Mineral measurements.
Specifications
Product Specifications
| Electrode Type | Tetra-polar electrode method using 8 point electrodes |
|---|---|
| Measurement Method |
|
| Communication | RS-232, USB, Wi-Fi, Bluetooth, LAN |
| Data Storage | Up to 100,000 results with Member ID |
| Measurement Mode | Expert Test, Self Test, Classmate, Blind Mode |
| Hand Electrodes | Rotatable for easy testing |
| Power | DC Adaptor (Input: 100–240 VAC, 50–60 Hz, 1.5 A (1.5–0.7 A), Output: 12 V, 5.0 A) |
| Measurement & Analysis Items [General Result] |
|
| Measurement & Analysis Items [Child Result] |
|
| Measurement Frequency | 5 kHz, 50 kHz, 100 kHz |
| Measurement Current | 200 µArms |
| Measuring Range | 10 – 1000 Ω |
| Range of Height | 60.0 – 220.0 cm (1 ft 11.6 in – 7 ft 2.6 in) |
| Input Interface | Keypad, Touch Screen |
| Data Management | iManager Software |
| Additional Function | Data Backup and Restore to USB, and DB Export to CSV File |
| Logo & Details Display | Logo or Name, Address & Contact Details |
| QR Code | Scan to Save, View & Track Results via iApp Connect |
| Supported Printer | Laser / Inkjet Printer recommended by MEDIANA |
| Audio Guidance | Voice guidance and alerts throughout the measurement |
| External Interface | RS232C (9Pin Serial) 1ea, USB (Type A) 2ea, Mini-USB (Type B) 1ea, LAN 1ea, Bluetooth (Optional), Wi-Fi (Optional) |
| Measurement Time | About 25 sec. |
| Age of Use | 3–99 years old |
| Weight Measurement | 2–250 kg (Resolution: 50 g) |
| Display | 7 inch (600 × 1024), Color Touch LCD |
| Dimension | 360 mm (W) × 559 mm (D) × 1077 mm (H) |
| Weight | About 17.5 kg |
| Design | Three-fold foldable (Easy to carry & transport) |
| Operating Environment | Temp 10–40°C, Humidity 30–75%, Air Pressure 70–101.3 kPa |
| Storage Environment | Temp -10–60°C, Humidity 10–80%, Air Pressure 50–101.3 kPa |
| Supporting Result Sheet | General Result, Children Result |
