MEDIANA i25 Professional
Body Composition Analyzer

Multi-frequency segmental analysis with DEXA-level correlation — delivering a comprehensive result sheet in approximately 25 seconds.

Industry Standard. Clinically Accurate. Proven Performance.

Mediana · Body Composition Analyzer

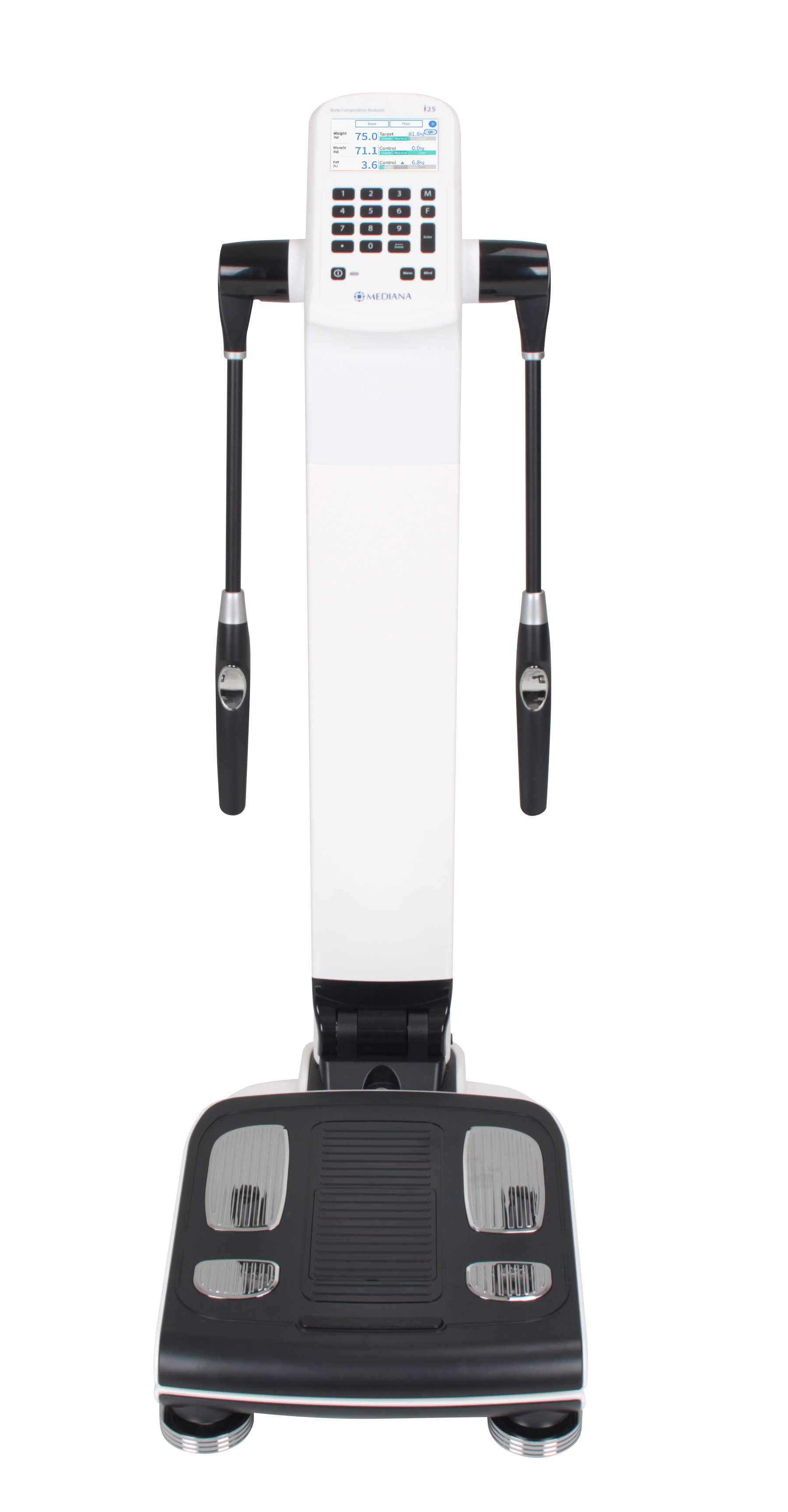

i25: Professional Body Composition Analyzer

A multi-frequency segmental body composition analyzer built for gyms, clinics, diagnostic centers, and sports performance facilities — 8-point tetrapolar electrodes, DEXA-level correlation, and a full 3-page result sheet in about 25 seconds. Mediana's most sellable professional model.

Multi-frequency segmental analysis with high correlation to DEXA
50 kHz Golden Frequency for clinical-grade accuracy
8-point tetra-polar electrode technology
Three-page result sheet — comprehensive and easy to understand

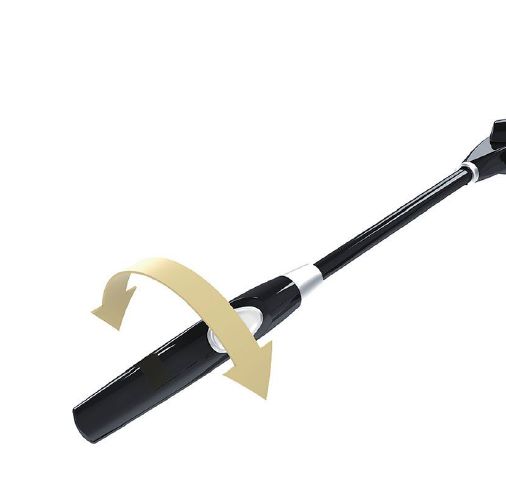

Rotatable hand electrodes for comfortable testing
Powerful data management with iManager software — free lifetime support

25 secMeasurement time

10 / 50 / 100 kHzMeasurement frequency

4.3"Color touch LCD

17 kgUnit weight

Instructional Video

i25 Professional Body Composition Analyzer

RESULT SHEET DATA

What Every Result Sheet Shows

Every measurement generates a comprehensive 3-page result sheet with detailed analysis, comparison and progress tracking.

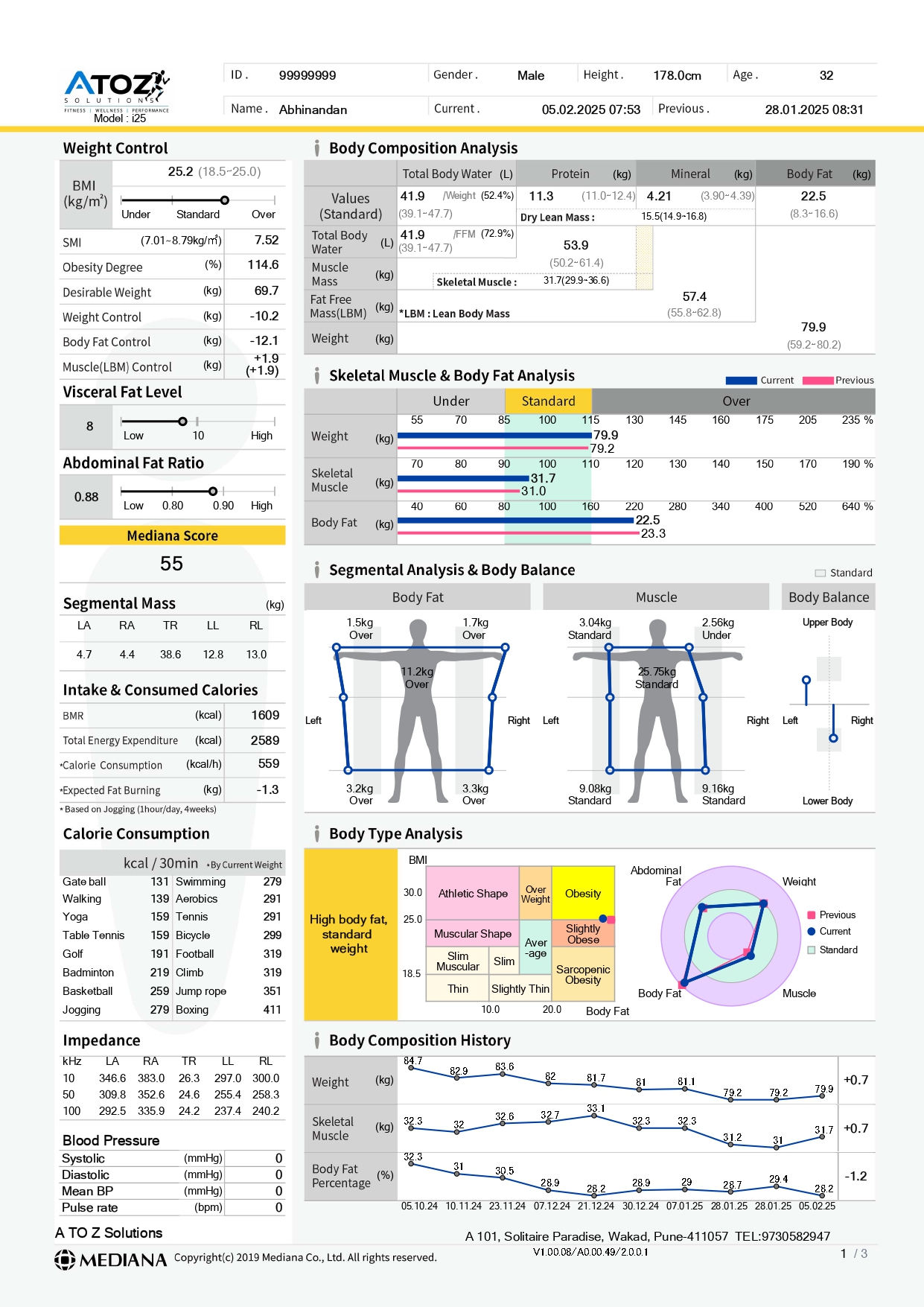

Body Composition

Understand your key body components.

Body Composition AnalysisBreakdown of water, protein, minerals, PBF (percentage body fat), body fat in kg, muscle mass and lean mass.
Skeletal Muscle & Fat AnalysisCompares weight, skeletal muscle, body fat in kg and PBF with standard ranges and previous results to track changes over time.
Body Type AnalysisDetermines body type using BMI and body fat, with a visual comparison of weight, muscle, body fat and abdominal fat against standard ranges.
Weight ControlBMI, SMI, obesity degree, desirable weight, body fat control and muscle control.
Abdominal Fat AnalysisVisceral fat level and abdominal fat ratio.
Mediana ScoreOverall health and body composition score.
Segmental MassMass distribution in the left arm, right arm, trunk, left leg and right leg, including muscle, fat and bone mass.
Intake & Consumed CaloriesBMR and energy expenditure insights.
Calorie ConsumptionEstimates calories burned during different exercises to help plan workouts.
QR CodeScan the QR code to save results directly to a smartphone.

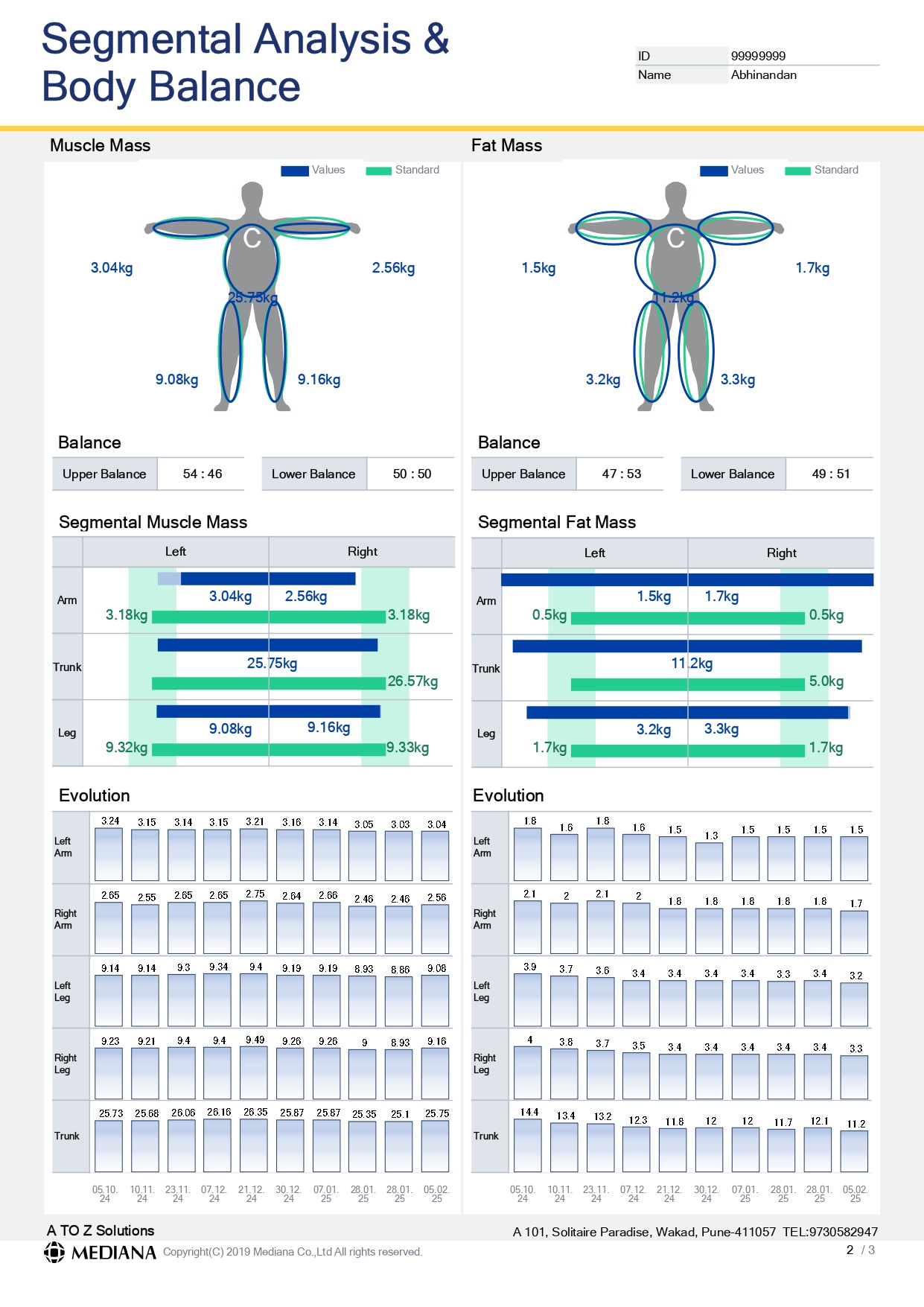

Segmental Analysis

See how your body is balanced and evolving.

Segmental Analysis & Body BalanceMuscle and fat distribution with body balance.
Segmental Muscle AnalysisRight arm, left arm, trunk, right leg, left leg (tabular format).
Segmental Muscle EvolutionPast 10 readings (date wise) for progress tracking.
Segmental Fat AnalysisRight arm, left arm, trunk, right leg, left leg (tabular format).
Segmental Fat EvolutionPast 10 readings (date wise) for progress tracking.

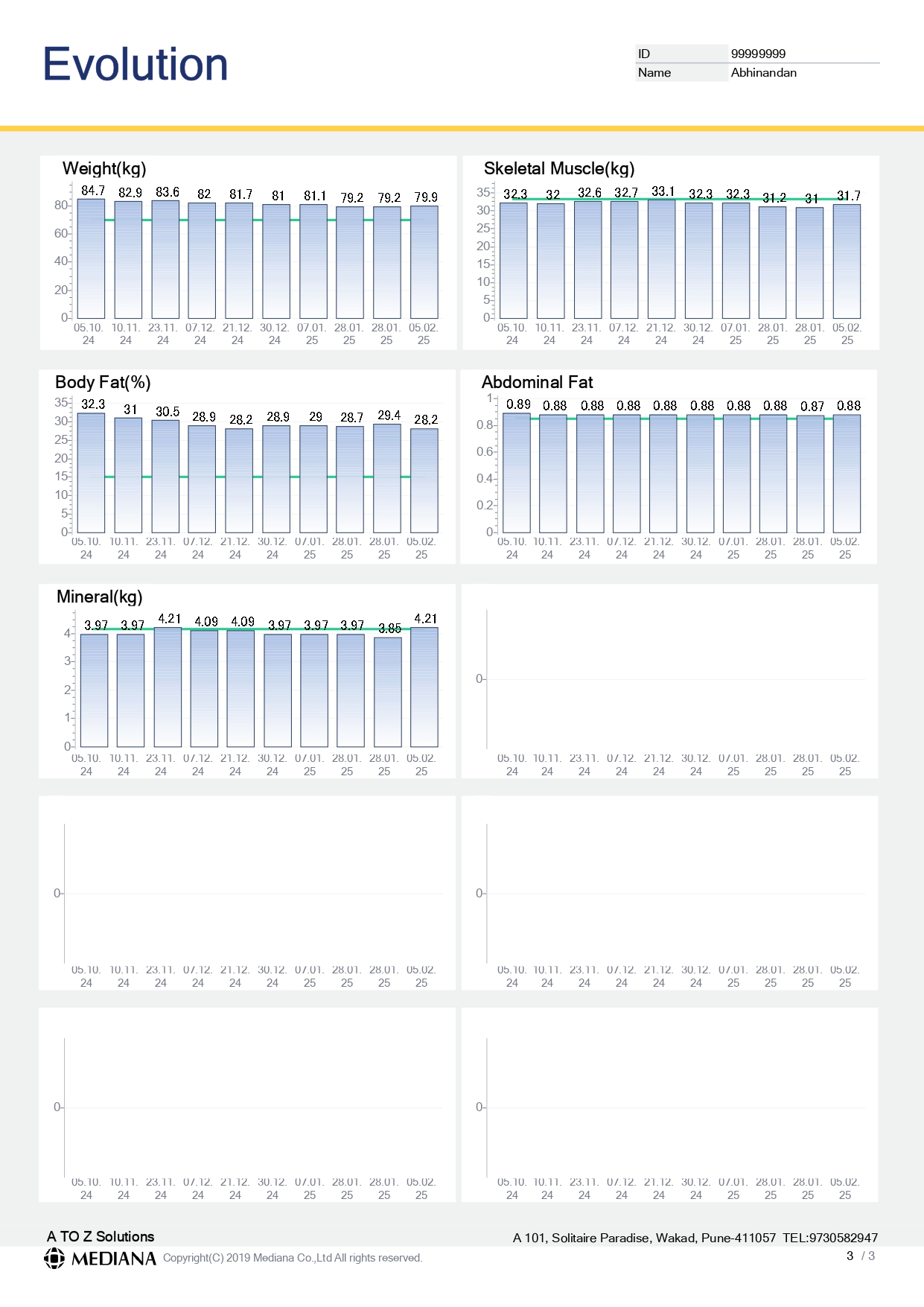

Progress & Evolution

Track your journey over time.

Body Composition HistoryChanges in weight, skeletal muscle and body fat.
Parameter-wise EvolutionWeight, skeletal muscle, body fat %, abdominal fat, mineral (past 10 readings).

Specifications

Product Specifications

Electrode Type	Tetra-Polar Electrode Method Using 8-Point Electrodes
Measurement Method	Direct Segmental Multi-Frequency Bioelectrical Impedance Analysis (DSM-BIA) Simultaneous Multi-Frequency Bioelectrical Impedance Analysis (SMF-BIA)
Communication	RS232 (9-Pin Serial Cable) × 1, USB Host × 2, Mini-USB B × 1
Data Storage	Up to 100,000 Results with Member ID
Test Modes	Expert Test, Self Test, Classmate, Blind Mode
Hand Electrodes	Rotatable for Easy Testing
Power	DC Adaptor (Input: 100–240 VAC, 50–60 Hz, 1.5 A / Output: 12 V, 5.0 A)
Measurement & Analysis Items [General Result]	Body Composition Analysis: Total Body Water, Muscle Mass, Fat Mass, Fat-Free Mass, Protein, Mineral, Skeletal Muscle Skeletal Muscle & Body Fat Analysis: Weight, Skeletal Muscle Mass, Body Fat Mass Assessment with Previous Result Segmental Analysis: Segmental Muscle, Fat and Body Balance Assessment Body Type Analysis: Body Type Table, Body Type Graph Assessment with Previous Result Weight Control: BMI, SMI, Obesity Degree, Desirable Weight, Weight/Body Fat/Muscle Mass Control Intake & Consumed Calories: BMR (Basal Metabolic Rate), Total Energy Expenditure, Calorie Consumption and Expected Fat Burning Overall Health Indicators: Mediana Score, Segmental Weight and Impedance, Calorie Consumption Table per Exercise, Visceral Fat Level & Abdominal Fat Ratio Body Composition History: History Graph for Weight, Skeletal Muscle Mass and Body Fat %
Measurement Frequency	10 kHz, 50 kHz, 100 kHz
Measurement Current	200 µArms
Measuring Range	10 – 1000 Ω
Height Range	60.0 – 220.0 cm (1 ft 11.6 in – 7 ft 2.6 in)

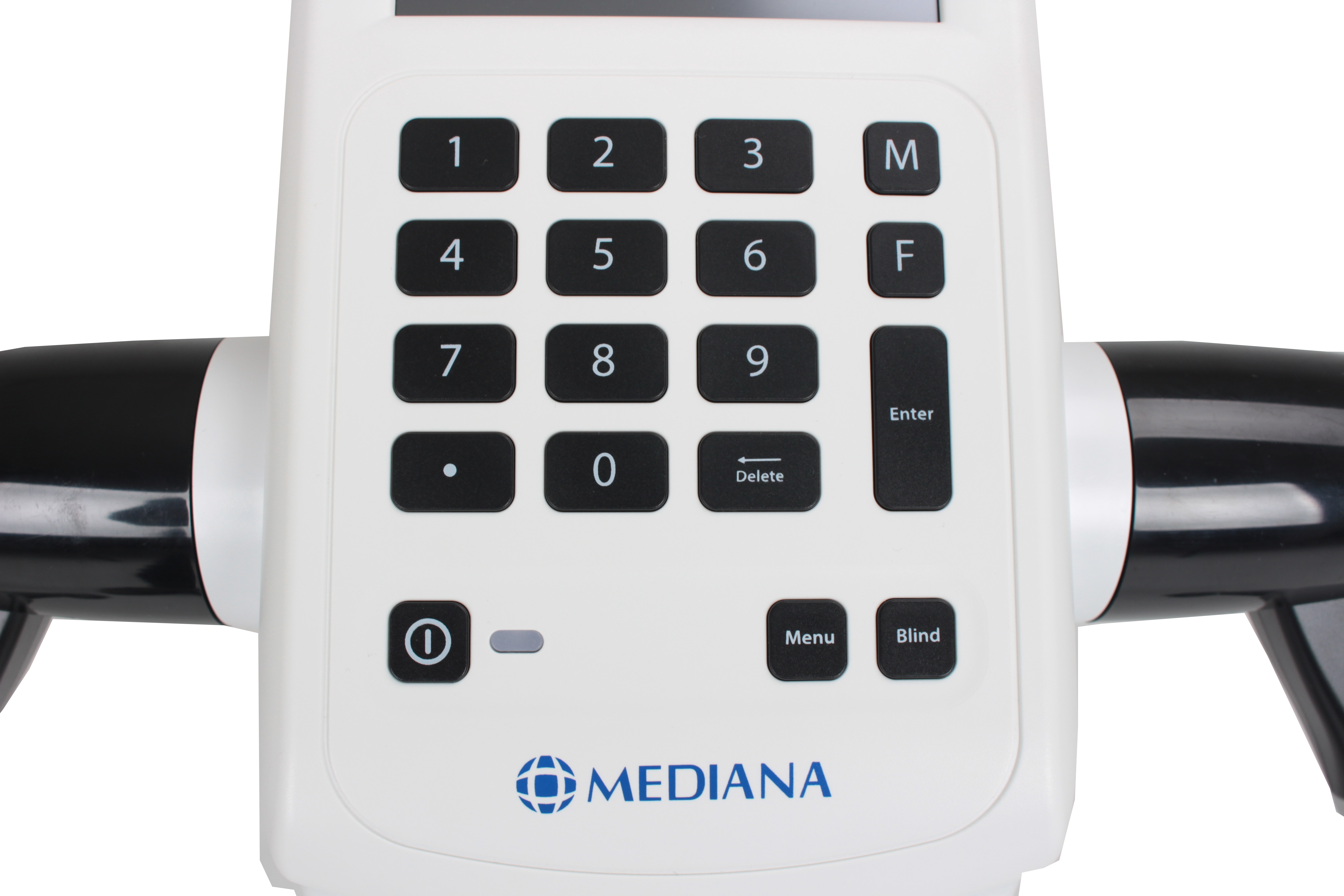

Input Interface	Keypad, Touch Screen
Data Management	iManager Software
Additional Function	Data Backup and Restore to USB, and DB Export to CSV File
Logo & Details Display	Logo or Name, Address & Contact Details
QR Code	Scan to Save, View & Track Results via iApp Connect
Supported Printer	Laser / Inkjet Printer Recommended by MEDIANA
Audio Guidance	Voice Guidance and Alerts Throughout the Measurement
External Interface	RS232C (9-Pin Serial) × 1, USB (Type A) × 2, Mini-USB (Type B) × 1
Measurement Time	About 25 Seconds
Age of Use	3 – 99 Years Old
Weight Measurement	2 – 250 kg (Resolution: 50 g)
Display	4.3 Inch (480 × 272), Color Touch LCD
Dimensions	360 mm (W) × 559 mm (D) × 992 mm (H)
Weight	About 17 kg
Operating Environment	Temperature: 10–40°C, Humidity: 30–75%, Air Pressure: 70–101.3 kPa
Storage Environment	Temperature: -10–60°C, Humidity: 10–80%, Air Pressure: 50–101.3 kPa
Supporting Result Sheet	General Result (Child Result Sheet Is Not Supported)
