MEDIANA i30 Professional
Body Composition Analyzer

Multi-frequency segmental analysis with DEXA-level correlation — delivering a comprehensive result sheet in approximately 25 seconds.

More Frequencies. More Insights. Greater Precision.

Mediana · Body Composition Analyzer

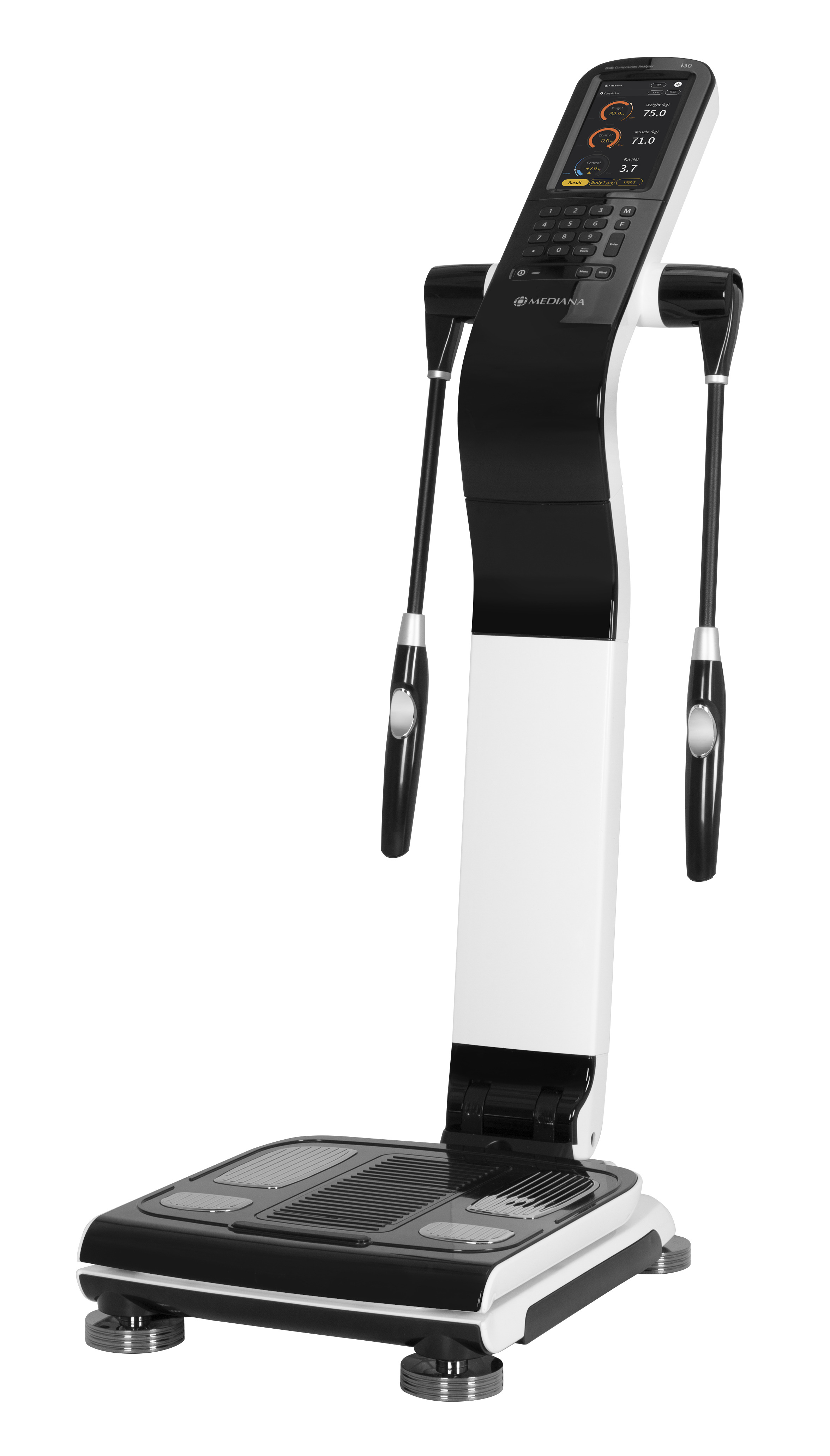

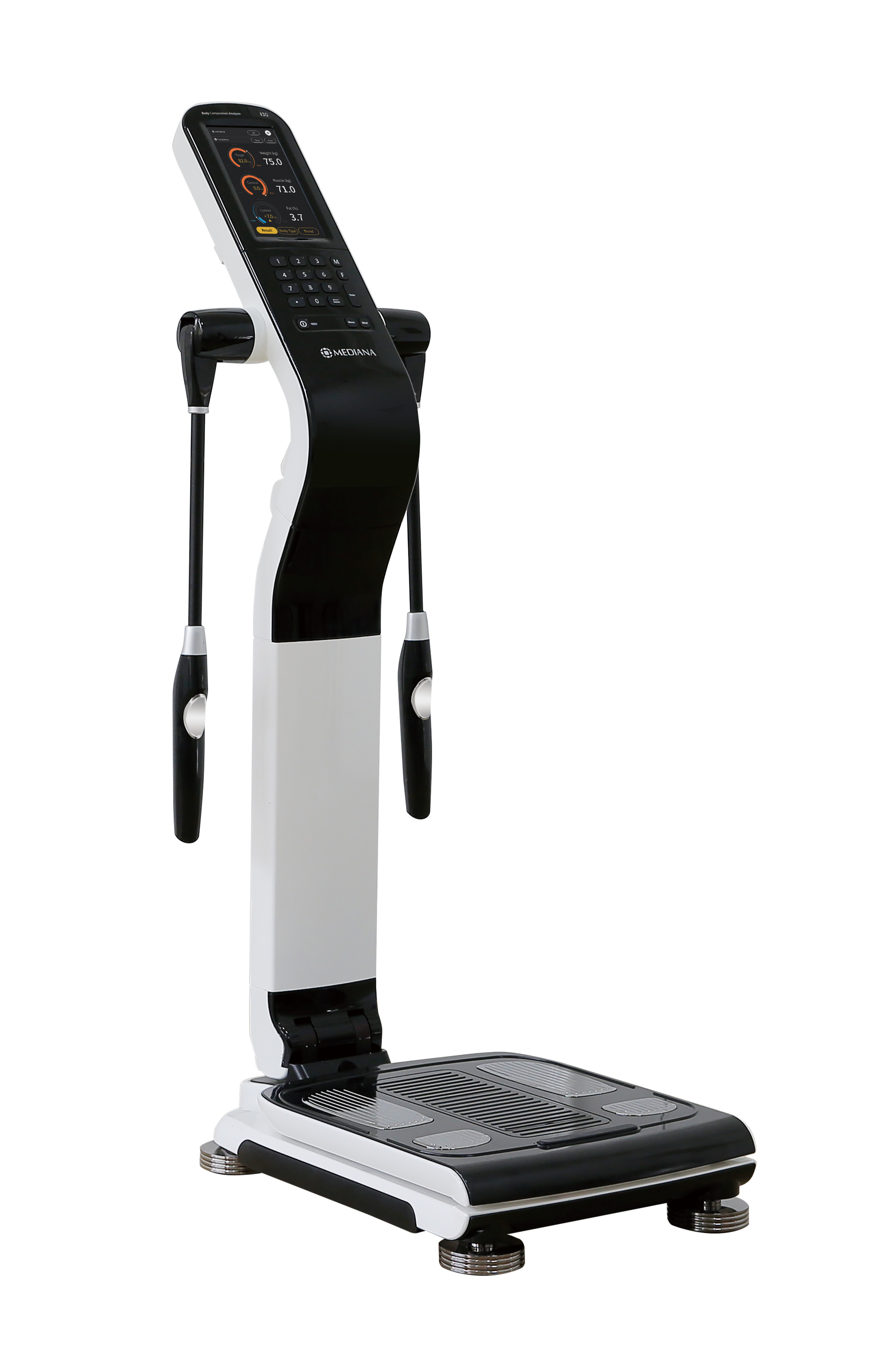

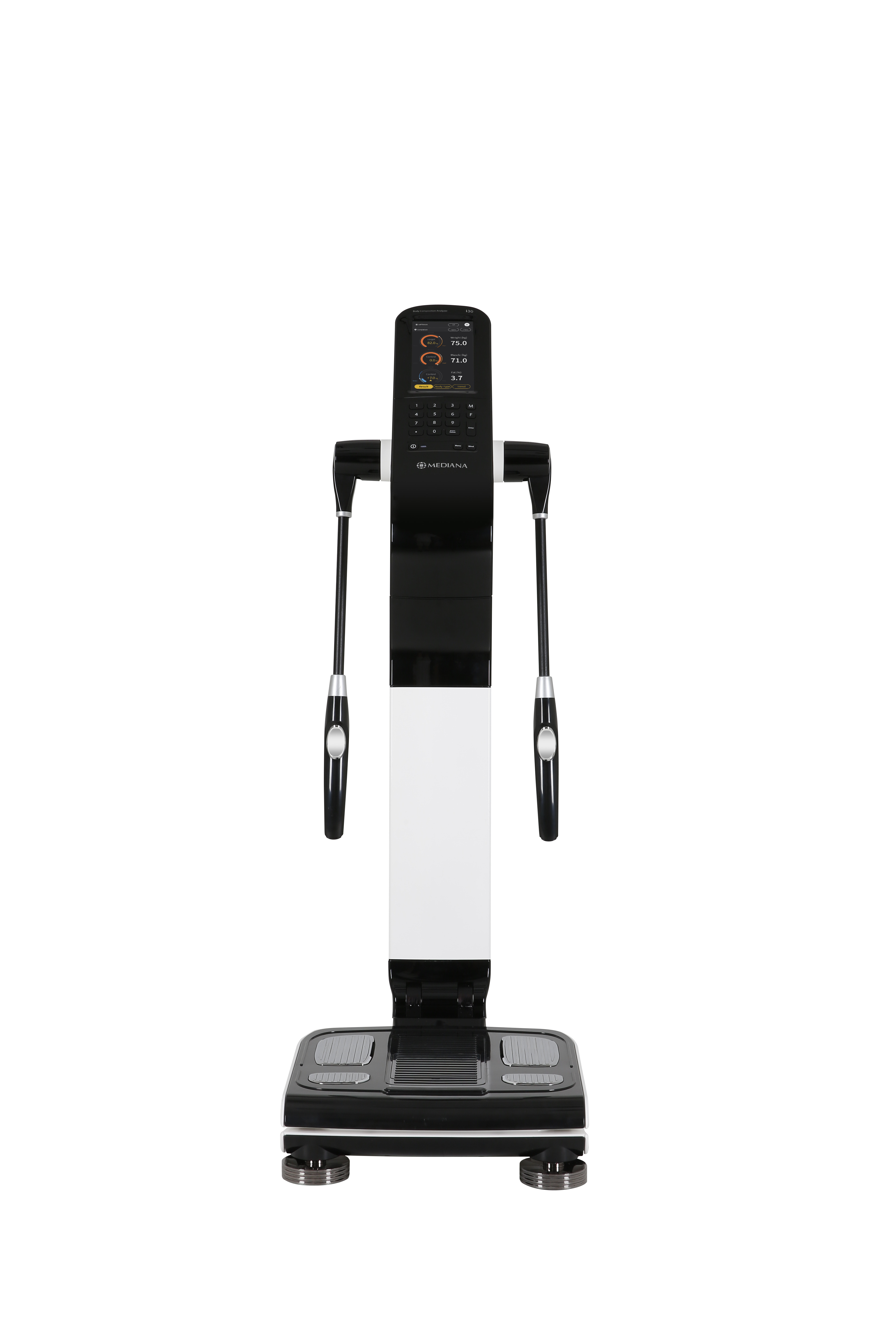

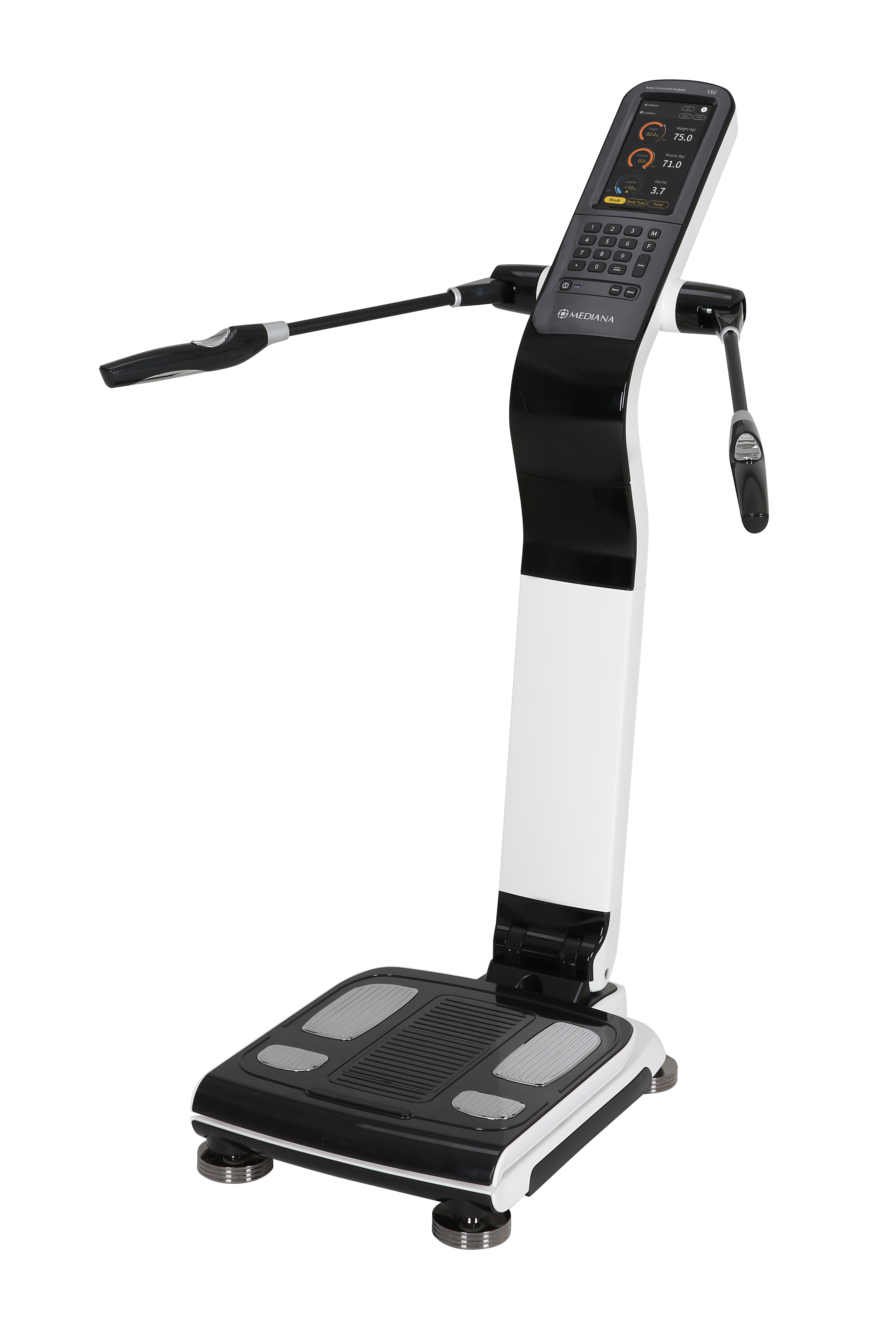

i30 Professional Body Composition Analyzer

The i30 Professional Body Composition Analyzer is a high-precision body composition analysis system designed for hospitals, clinics, diagnostic centers, fitness clubs, wellness centers, and sports performance facilities.

Multi-Frequency Segmental Analysis with high correlation to DEXA
Blind Mode – Hide weight and body fat information from the screen for private measurements
Three-Page Result Sheet – Comprehensive and easy to understand

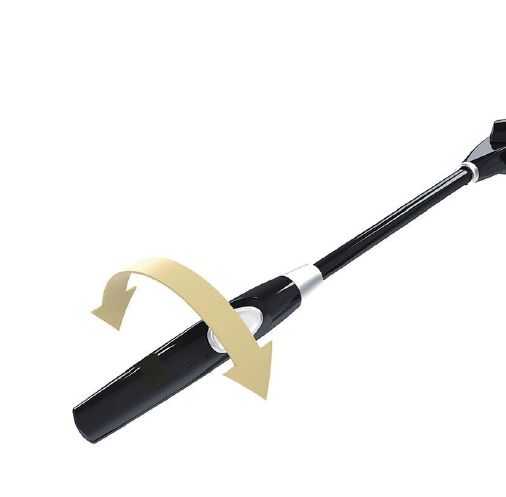

Rotatable Hand Electrodes – Comfortable and convenient testing
Powerful iManager Software – Advanced data management and analysis
Three-Fold Compact Design – Easy to carry, transport, and store
Result Sheets – Dedicated result formats for both Adult and Child

25 sec Measurement time

5 / 50 / 100 kHz Measurement frequency

7" Color touch LCD

17.5 kg Unit weight

See it in use

i30 Demonstration

RESULT SHEET DATA

What Every Result Sheet Shows

Comprehensive result formats for Adult and Child measurements, with body composition, growth, progress and evolution insights.

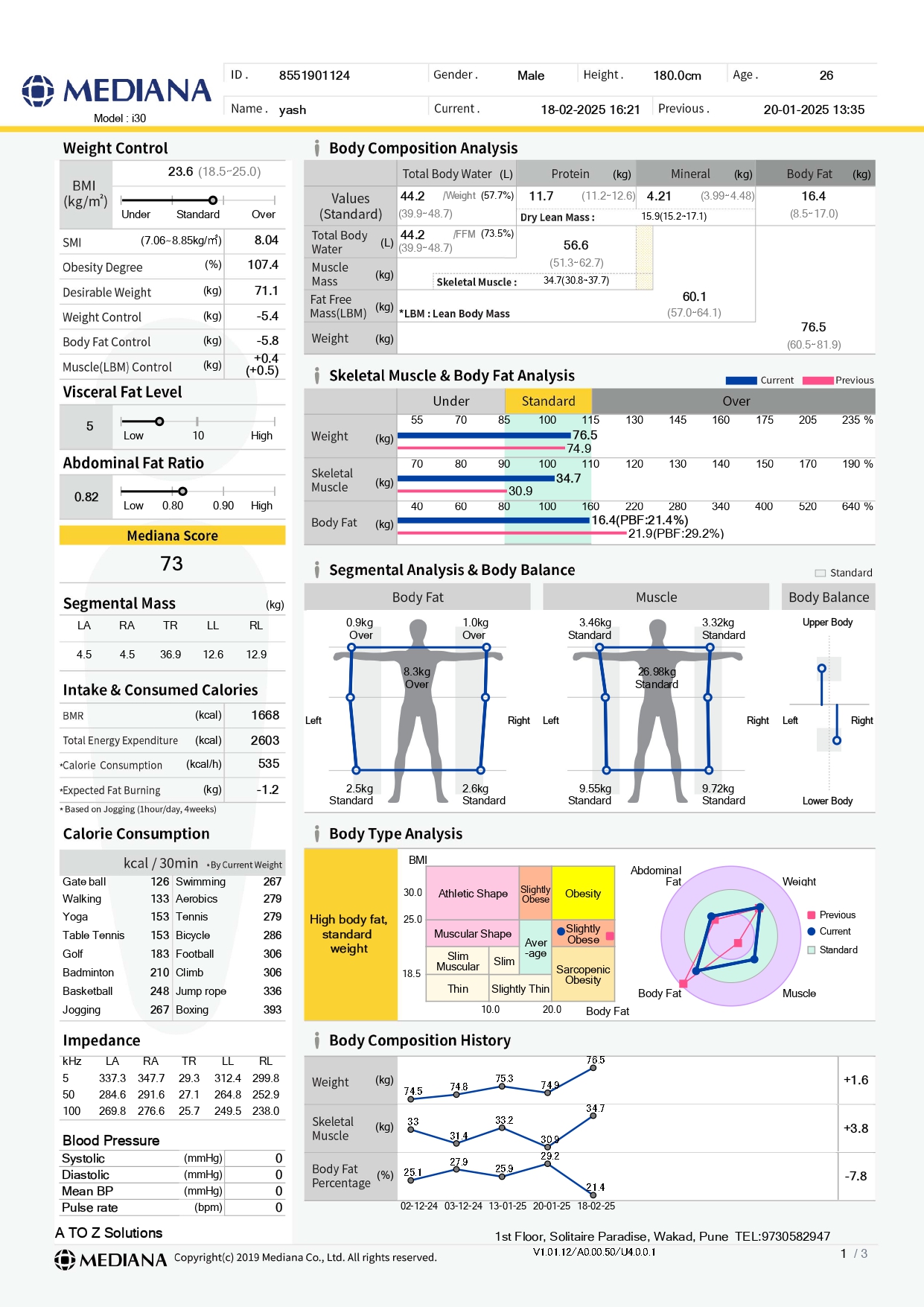

GENERAL RESULT SHEET

Body Composition

Understand your key body composition and growth indicators.

Body Composition Analysis Breakdown of Total Body Water, Protein, Minerals, Body Fat, Muscle Mass, Fat-Free Mass and Weight.
Skeletal Muscle & Body Fat Analysis Compare Weight, Skeletal Muscle and Body Fat with standard ranges and previous results to track changes over time.
Weight Control Includes BMI, Obesity Degree, Desirable Weight, Weight Control, Body Fat Control and Muscle Control.
Mediana Score Provides an overall Body Composition Score.
Growth Evaluation Evaluates Muscle, Skeletal Muscle and Obesity against age-based standards.
Body Balance Evaluates Upper Body and Lower Body balance against standard ranges.
Segmental Analysis & Body Balance Visual analysis of Body Fat and Muscle distribution across the body, along with Body Balance.
Body Composition History Tracks previous Height, Weight, Skeletal Muscle and Body Fat measurements.

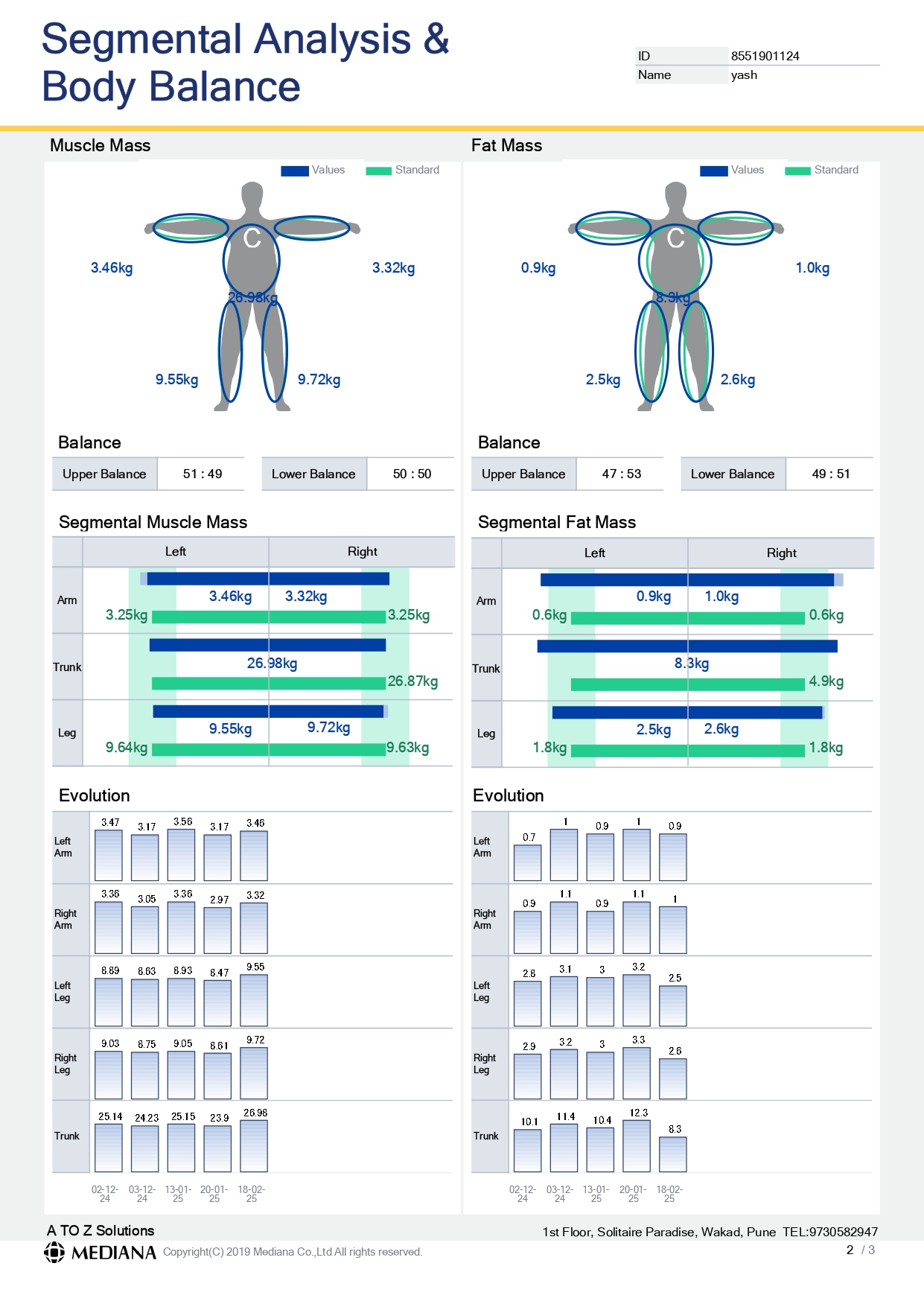

Segmental Analysis

Analyse muscle and fat distribution across different body segments.

Segmental Muscle Analysis Evaluates muscle distribution across the body.
Segmental Body Fat Analysis Shows body fat distribution by body segment.
Body Balance Helps evaluate upper and lower body balance.

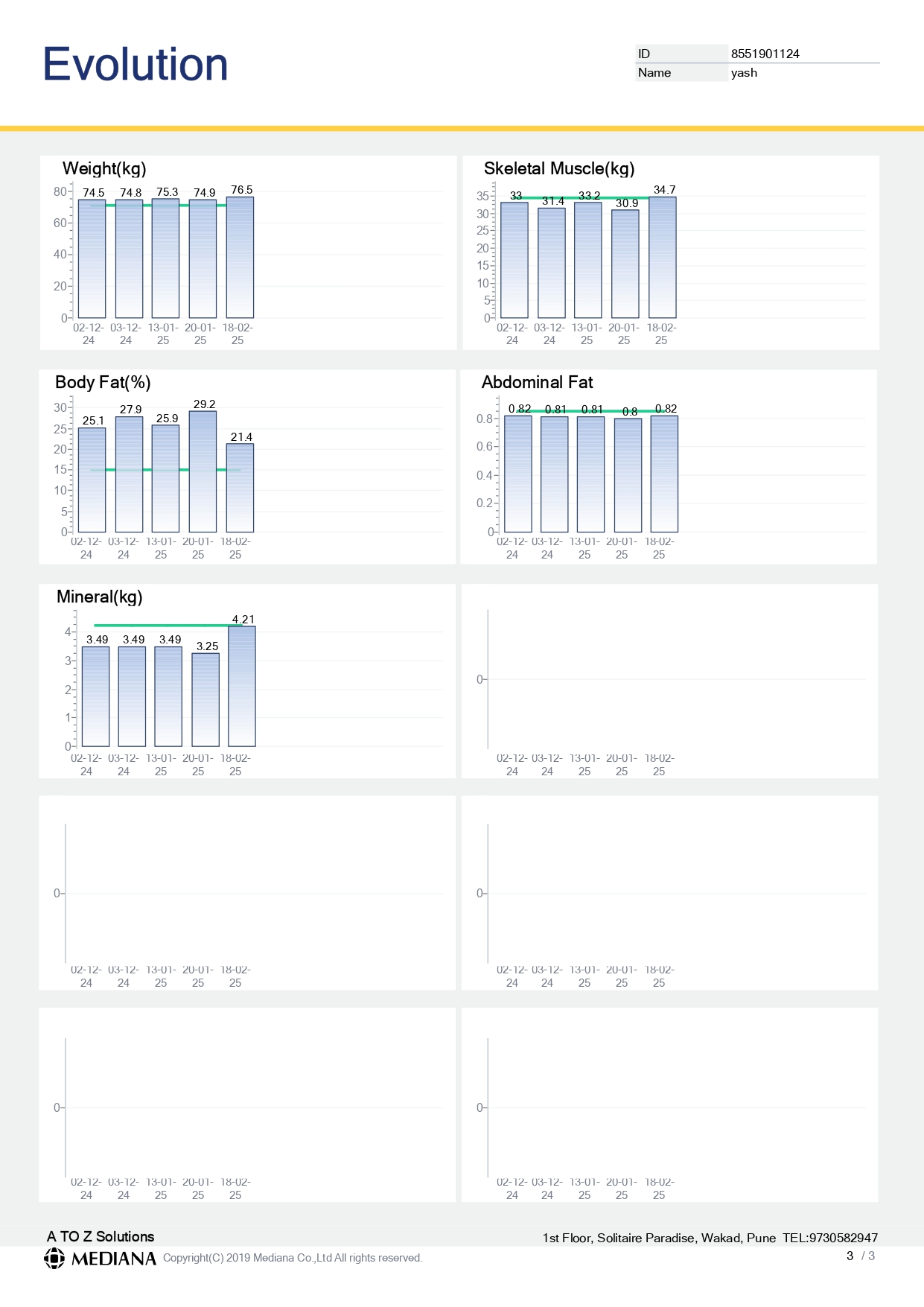

Progress & Evolution

Track changes in body composition over time.

Body Composition History Shows previous Height, Weight, Skeletal Muscle and Body Fat readings.
Previous Result Comparison Compares current and previous Weight, Skeletal Muscle and Body Fat values.
Growth Progress Helps track changes in body composition across multiple measurements.

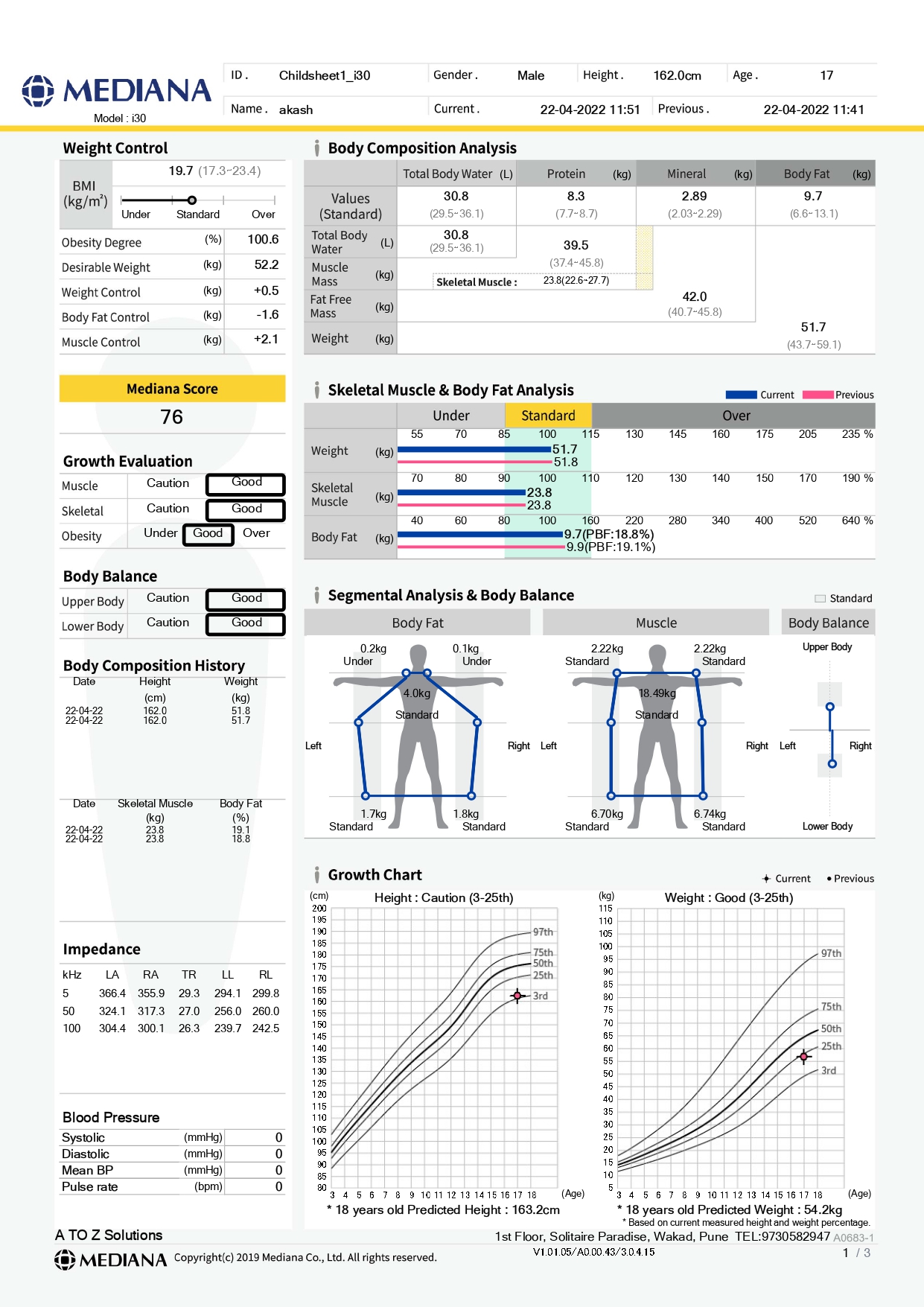

CHILD RESULT SHEET

Body Composition

Understand your key body composition and growth indicators.

Body Composition Analysis Breakdown of Total Body Water, Protein, Minerals, Body Fat, Muscle Mass, Fat-Free Mass and Weight.
Skeletal Muscle & Body Fat Analysis Compare Weight, Skeletal Muscle and Body Fat with standard ranges and previous results to track changes over time.
Weight Control Includes BMI, Obesity Degree, Desirable Weight, Weight Control, Body Fat Control and Muscle Control.
Mediana Score Provides an overall Body Composition Score.
Growth Evaluation Evaluates Muscle, Skeletal Muscle and Obesity against age-based standards.
Body Balance Evaluates Upper Body and Lower Body balance against standard ranges.
Segmental Analysis & Body Balance Visual analysis of Body Fat and Muscle distribution across the body, along with Body Balance.
Body Composition History Tracks previous Height, Weight, Skeletal Muscle and Body Fat measurements.

Growth & Development

Monitor Child growth and development over time.

Growth Chart – Height Tracks height against age-based percentile curves.
Growth Chart – Weight Tracks weight against age-based percentile curves.
Predicted Height Provides an age-based predicted height reference.
Growth Status Indicates whether Height and Weight fall within the appropriate age-based growth range.

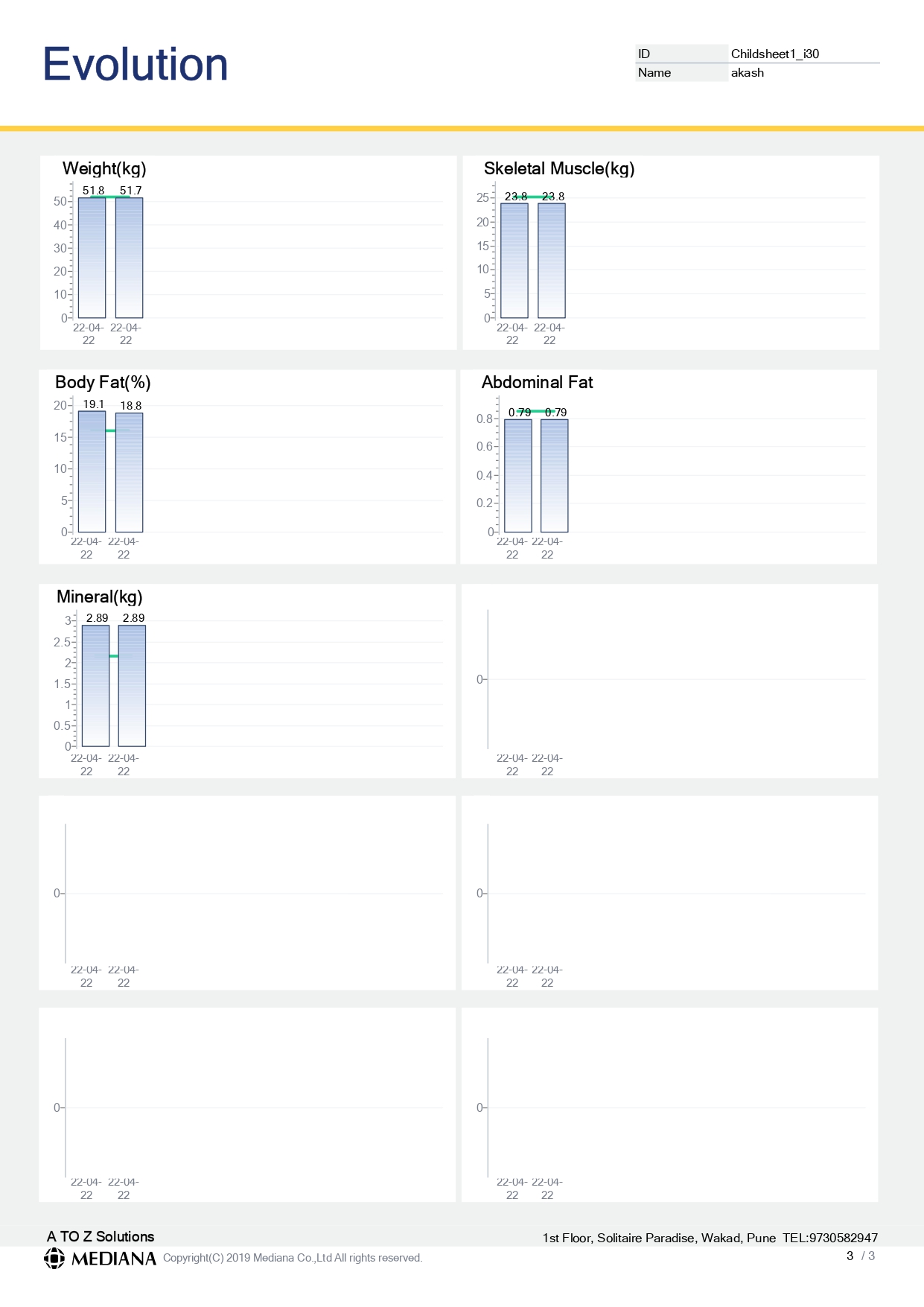

Progress & Evolution

Track changes in body composition and growth over time.

Body Composition History Shows previous Height, Weight, Skeletal Muscle and Body Fat readings.
Previous Result Comparison Compares current and previous Weight, Skeletal Muscle and Body Fat values.
Growth Progress Helps track height and weight development according to age-based growth standards.

Specifications

Product Specifications

Electrode Type	Tetra-polar electrode method using 8 point electrodes
Measurement Method	Direct Segmental Multi-Frequency Bioelectrical Impedance Analysis (DSM-BIA) Simultaneous Multi-Frequency Bioelectrical Impedance Analysis (SMF-BIA)
Communication	RS-232, USB, Wi-Fi, Bluetooth, LAN
Data Storage	Up to 100,000 results with Member ID
Measurement Mode	Expert Test, Self Test, Classmate, Blind Mode
Hand Electrodes	Rotatable for easy testing
Power	DC Adaptor (Input: 100–240 VAC, 50–60 Hz, 1.5 A (1.5–0.7 A), Output: 12 V, 5.0 A)
Measurement & Analysis Items [General Result]	Body Composition Analysis: Total Body Water, Muscle Mass, Fat Mass, Fat Free Mass, Protein, Mineral, Skeletal Muscle Skeletal Muscle & Body Fat Analysis: Weight, Skeletal Muscle Mass, Body Fat Mass Assessment with previous result Segmental Analysis: Segmental Muscle, Fat and Body Balance Assessment Body Type Analysis: Body Type Table, Body Type Graph Assessment with previous result Weight Control: BMI, SMI, Obesity Degree, Desirable Weight, Weight/Body Fat/Muscle Mass Control Intake & Consumed Calories: BMR (Basal Metabolic Rate), Total Energy Expenditure, Calorie Consumption and Expected Fat Burning Overall Health Indicators: Mediana Score, Segmental Weight and Impedance, Calorie Consumption Table per Exercise, Visceral Fat Level & Abdominal Fat Ratio Body Composition History: History Graph for Weight, Skeletal Muscle Mass and Body Fat %
Measurement & Analysis Items [Child Result]	Body Composition Analysis: Total Body Water, Muscle Mass, Fat Mass, Fat Free Mass, Protein, Mineral, Skeletal Muscle Skeletal Muscle & Body Fat Analysis: Weight, Skeletal Muscle Mass, Body Fat Mass Assessment with previous result Segmental Analysis: Segmental Muscle, Fat and Body Balance Assessment Growth Chart: Height and Weight with 18 years old Predicted Value Weight Control: BMI, SMI, Obesity Degree, Desirable Weight, Weight/Body Fat/Muscle Mass Control Intake & Consumed Calories: BMR (Basal Metabolic Rate), Total Energy Expenditure, Calorie Consumption and Expected Fat Burning Overall Health Indicators: Mediana Score, Segmental Weight and Impedance, Calorie Consumption Table per Exercise, Visceral Fat Level & Abdominal Fat Ratio Body Composition History: Weight, Skeletal Muscle Mass, Body Fat %, Height
Measurement Frequency	5 kHz, 50 kHz, 100 kHz
Measurement Current	200 µArms
Measuring Range	10 – 1000 Ω
Range of Height	60.0 – 220.0 cm (1 ft 11.6 in – 7 ft 2.6 in)
Input Interface	Keypad, Touch Screen
Data Management	iManager Software
Additional Function	Data Backup and Restore to USB, and DB Export to CSV File
Logo & Details Display	Logo or Name, Address & Contact Details
QR Code	Scan to Save, View & Track Results via iApp Connect
Supported Printer	Laser / Inkjet Printer recommended by MEDIANA
Audio Guidance	Voice guidance and alerts throughout the measurement
External Interface	RS232C (9Pin Serial) 1ea, USB (Type A) 2ea, Mini-USB (Type B) 1ea, LAN 1ea, Bluetooth (Optional), Wi-Fi (Optional)
Measurement Time	About 25 sec.
Age of Use	3–99 years old
Weight Measurement	2–250 kg (Resolution: 50 g)
Display	7 inch (600 × 1024), Color Touch LCD
Dimension	360 mm (W) × 559 mm (D) × 1077 mm (H)
Weight	About 17.5 kg
Design	Three-fold foldable (Easy to carry & transport)
Operating Environment	Temp 10–40°C, Humidity 30–75%, Air Pressure 70–101.3 kPa
Storage Environment	Temp -10–60°C, Humidity 10–80%, Air Pressure 50–101.3 kPa
Supporting Result Sheet	General Result, Children Result
